UV Card Printer — Batch Print PVC, Business & ID Cards Direct from Factory
for PVC, Business & ID Cards

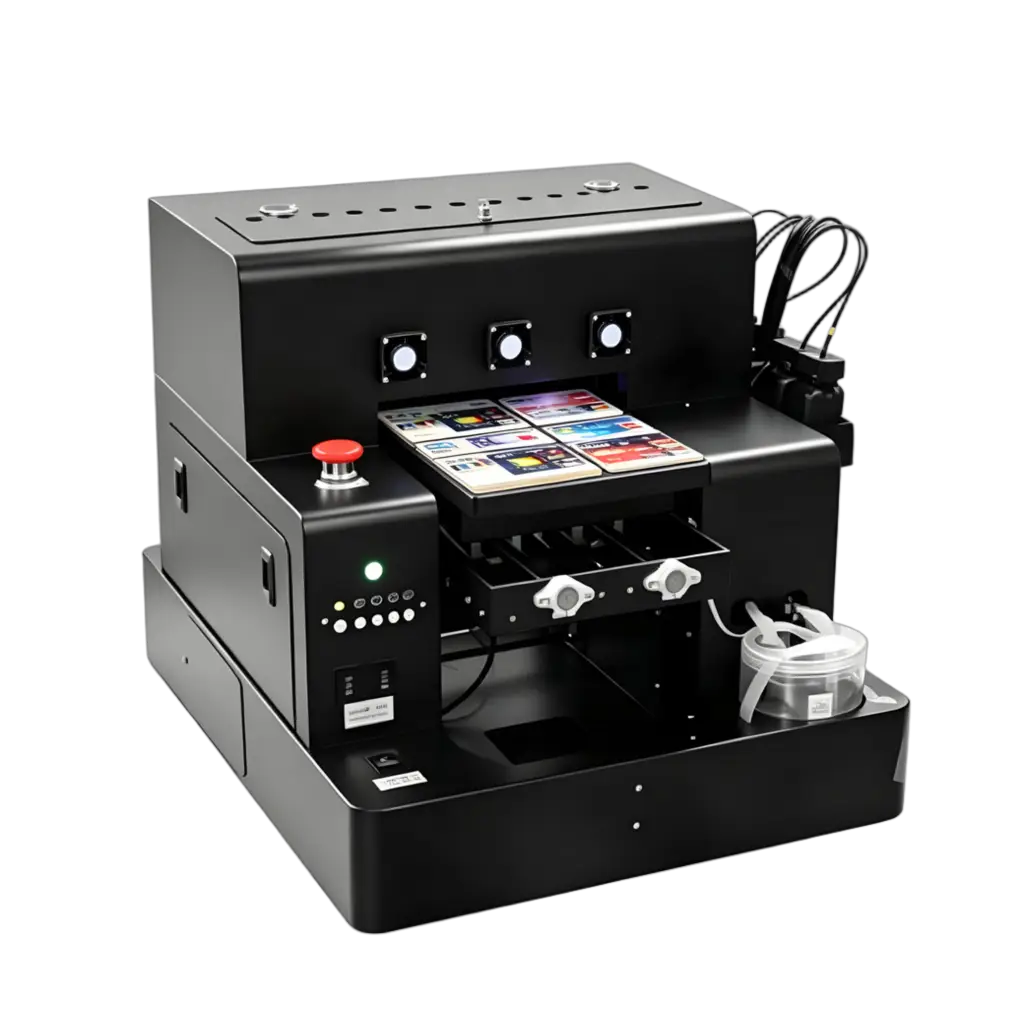

The GNFEI F85V4 is a compact A4 UV flatbed card printer that prints full-color, waterproof designs directly onto PVC business cards, credit cards, ID cards, membership cards, and metal cards — CMYK + White + Varnish in one automated pass. No minimum order, no setup fees, batch print up to 25 cards at once.
Four capabilities that make the GNFEI F85V4 the preferred UV printer for PVC cards, business cards, and ID cards among print shops and small businesses worldwide.
The dedicated A4 card tray holds up to 25 standard CR80 PVC cards simultaneously. Print identical or completely different designs on every card in a single automated batch — ideal for high-volume ID card, business card, and membership card production.
UV-cured ink bonds permanently to PVC, ABS, metal, and acrylic card surfaces. Printed cards survive daily wallet handling, bank-grade wear, and chemical exposure without fading or peeling — unlike dye-sublimation or inkjet alternatives.
Six-channel ink system prints vivid full-color designs with opaque white underbase for dark and transparent cards, plus optional spot varnish for raised 3D embossed effects and premium gloss finish — all in a single automated pass.
Through Acro RIP variable data printing (VDP), each card in a batch can carry unique information — serial numbers, names, barcodes, QR codes, photos — without stopping the machine. The only UV card printer you need for fully personalized card production.
From print shops and corporate offices to event organizers and loyalty program operators — the F85V4 UV PVC card printer handles every card type at any volume.
The F85V4 is the preferred UV printer for business cards among print shops, marketing agencies, and corporate in-house print teams. Print full-color PVC business cards, transparent frosted cards, and metallic-finish name cards with gloss varnish spot effects — at a cost of $0.003 per card in UV ink. No plates, no minimum run, no lead time. Each card is dry and ready to handle the moment it leaves the printer.
- Print on PVC, ABS, metal, wood, acrylic, and NFC card blanks
- Spot varnish creates premium raised texture on logos and text
- Variable data: unique names, QR codes, and designs per card
- Ultra-low ink cost — ~$0.003 per card, $0.003/pc at scale

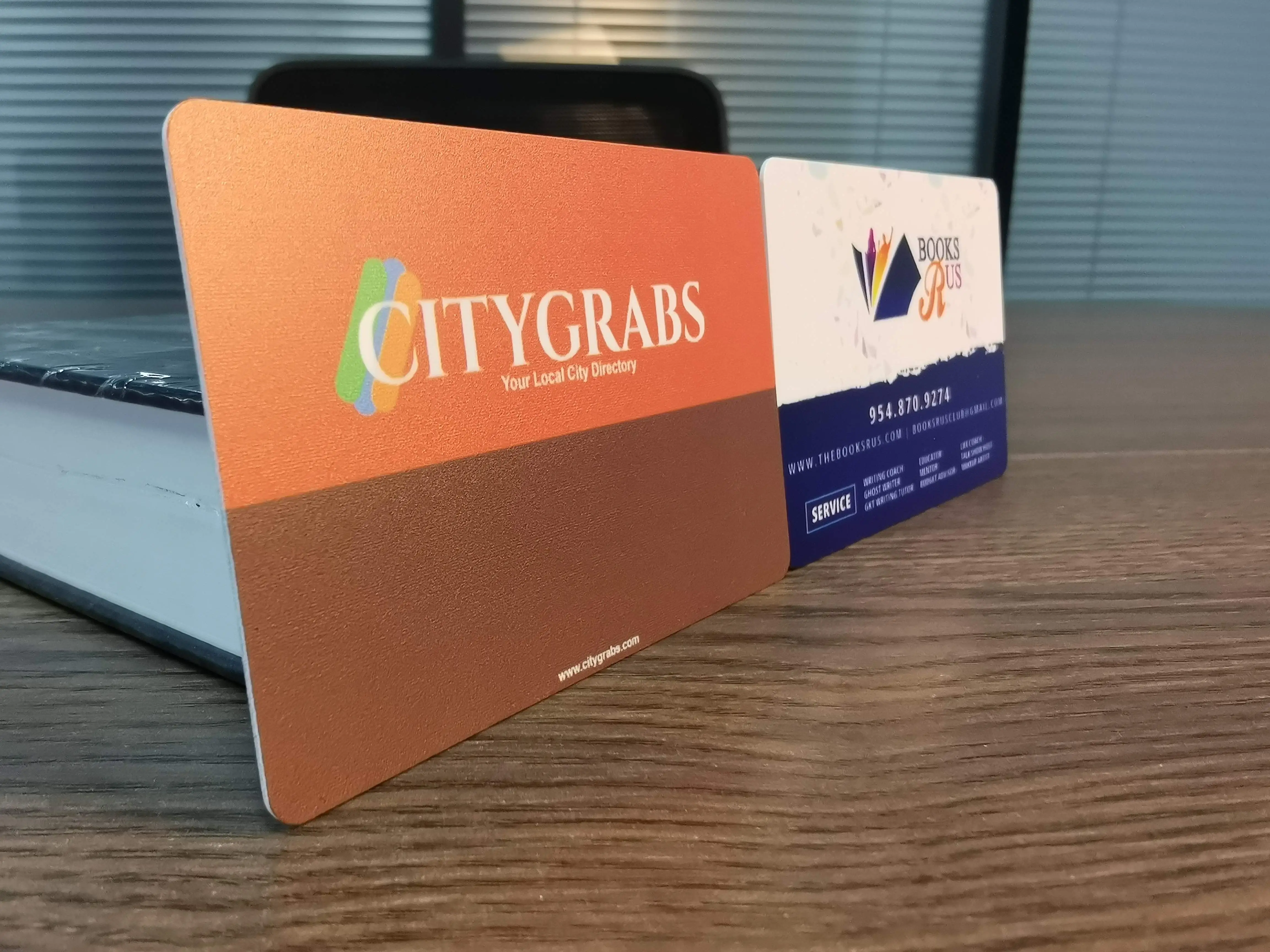

Organizations issue hundreds of employee ID cards, student badges, visitor passes, and event credentials with the F85V4. As a UV ID card printing machine, it delivers photo-quality portraits, barcodes, and security watermarks on CR80-sized PVC cards in under 3 minutes per 25-card batch. Unlike traditional direct-to-card printers that require dye ribbon cartridges, the F85V4 uses bulk UV ink at a fraction of the per-card cost — and produces more durable results.
- Batch print 25 ID cards in under 3 minutes with full-color output
- UV-cured print is waterproof, tamper-evident, and scratch-resistant
- Compatible with pre-printed card blanks with hologram overlays
- Supports double-sided printing via manual flip — no extra hardware

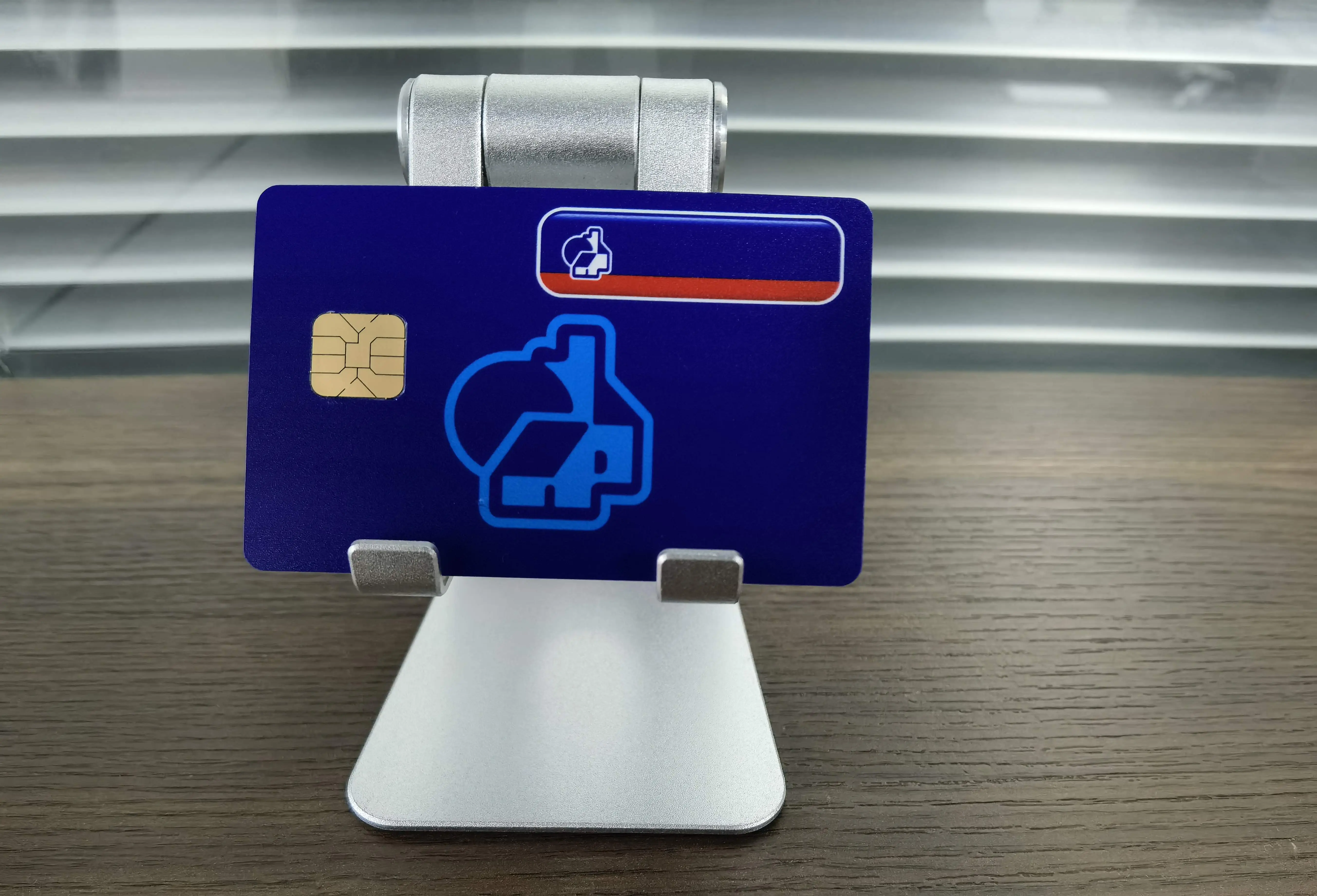

Gyms, retail chains, restaurants, and hospitality brands use the F85V4 as their in-house membership card printer — printing loyalty cards, gift cards, and VIP member cards with full branding on-demand as new members join. No minimum batch, no outsourcing lead time, no per-card markup from a card bureau. Print one card or a thousand with identical quality, and personalize every card with the member's name and unique barcode through VDP software.
- Print member names, photos, and unique barcodes per card via VDP
- Gloss varnish finish matches commercial card bureau quality
- Compatible with magnetic stripe and RFID card blanks
- Full-bleed edge-to-edge printing on standard CR80 card size
Real production demos — batch PVC card printing, variable data ID cards, spot varnish business cards, and credit card-size UV printing. See the speed and quality that makes this the preferred UV card printer for small businesses.

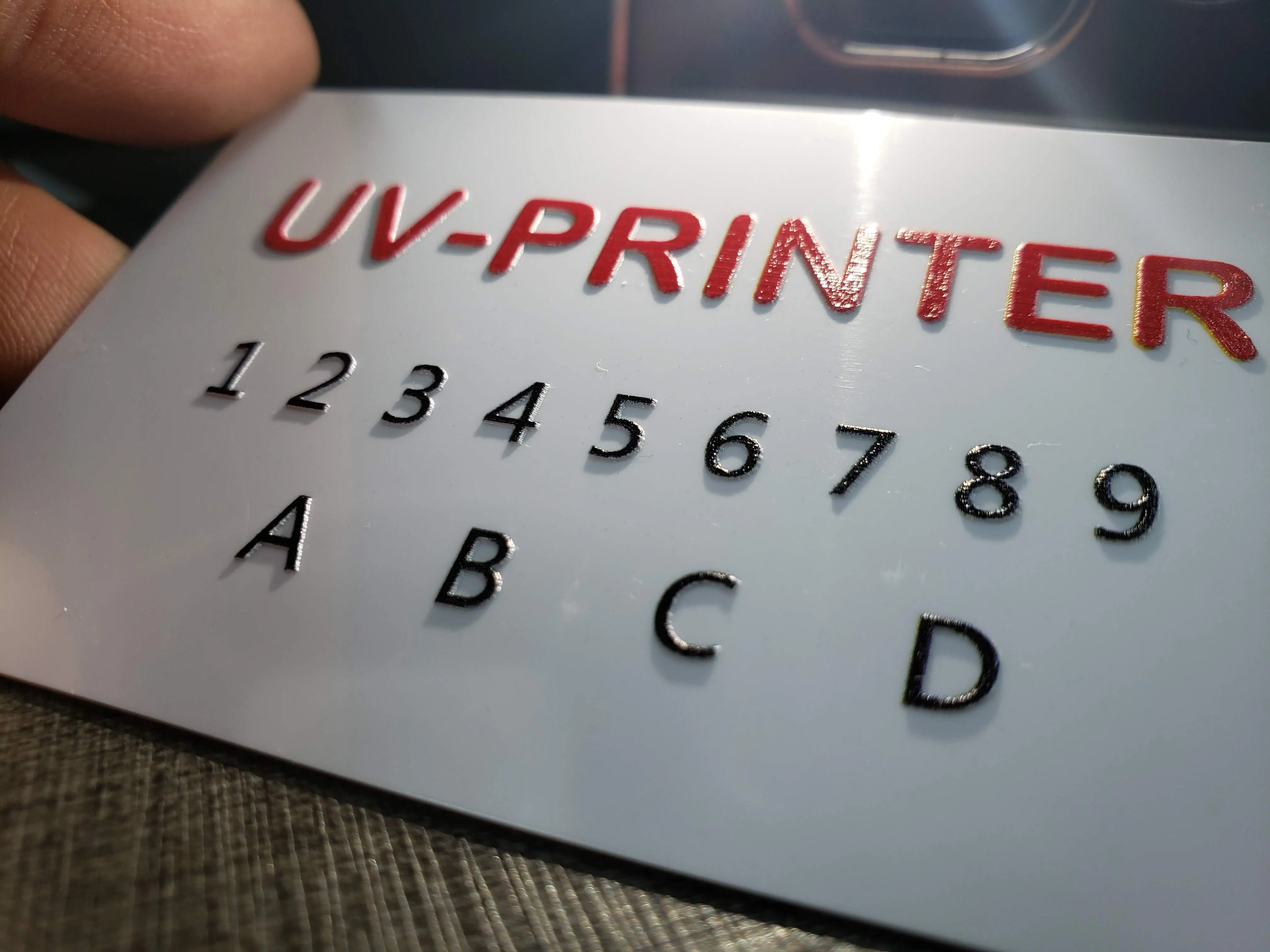

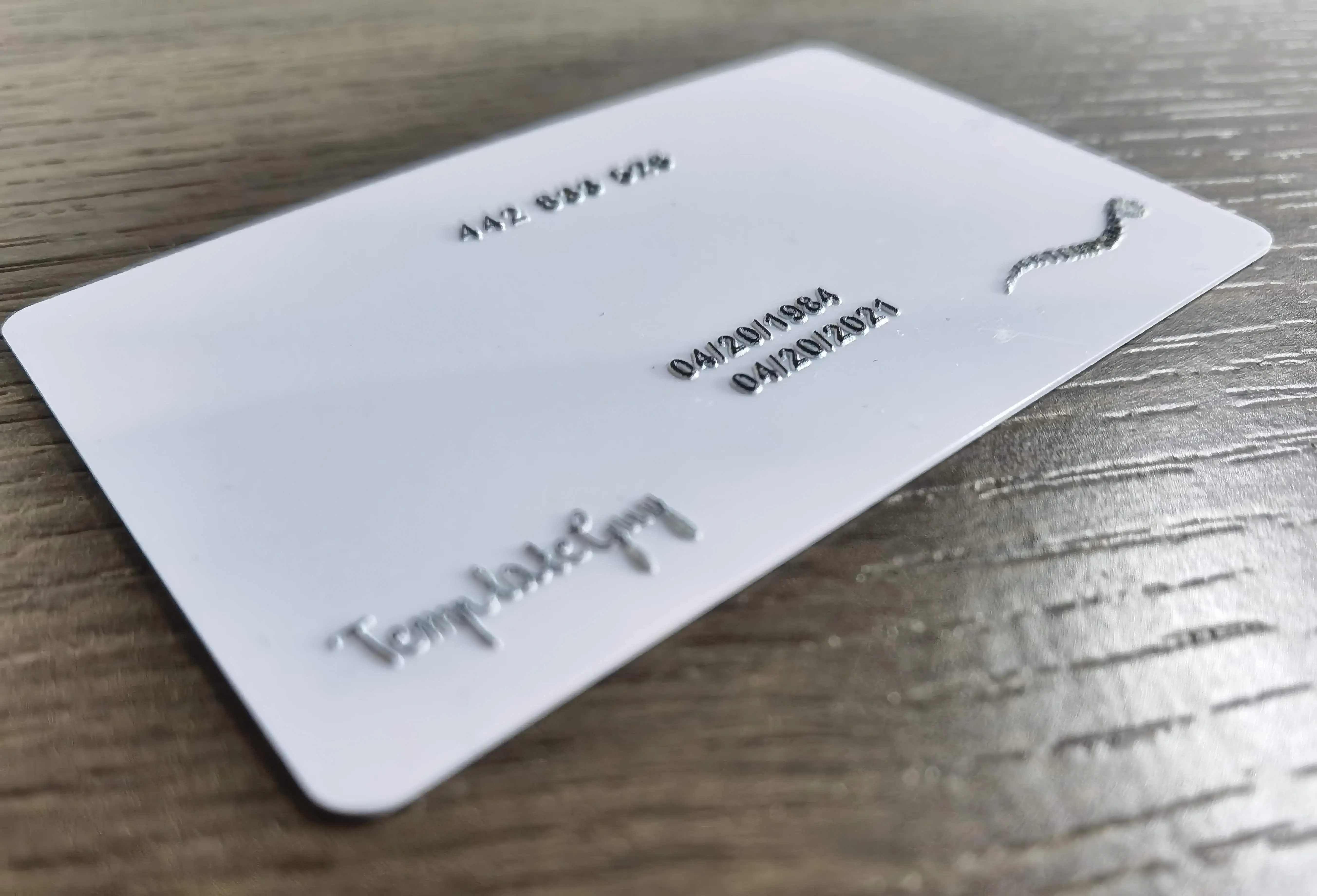

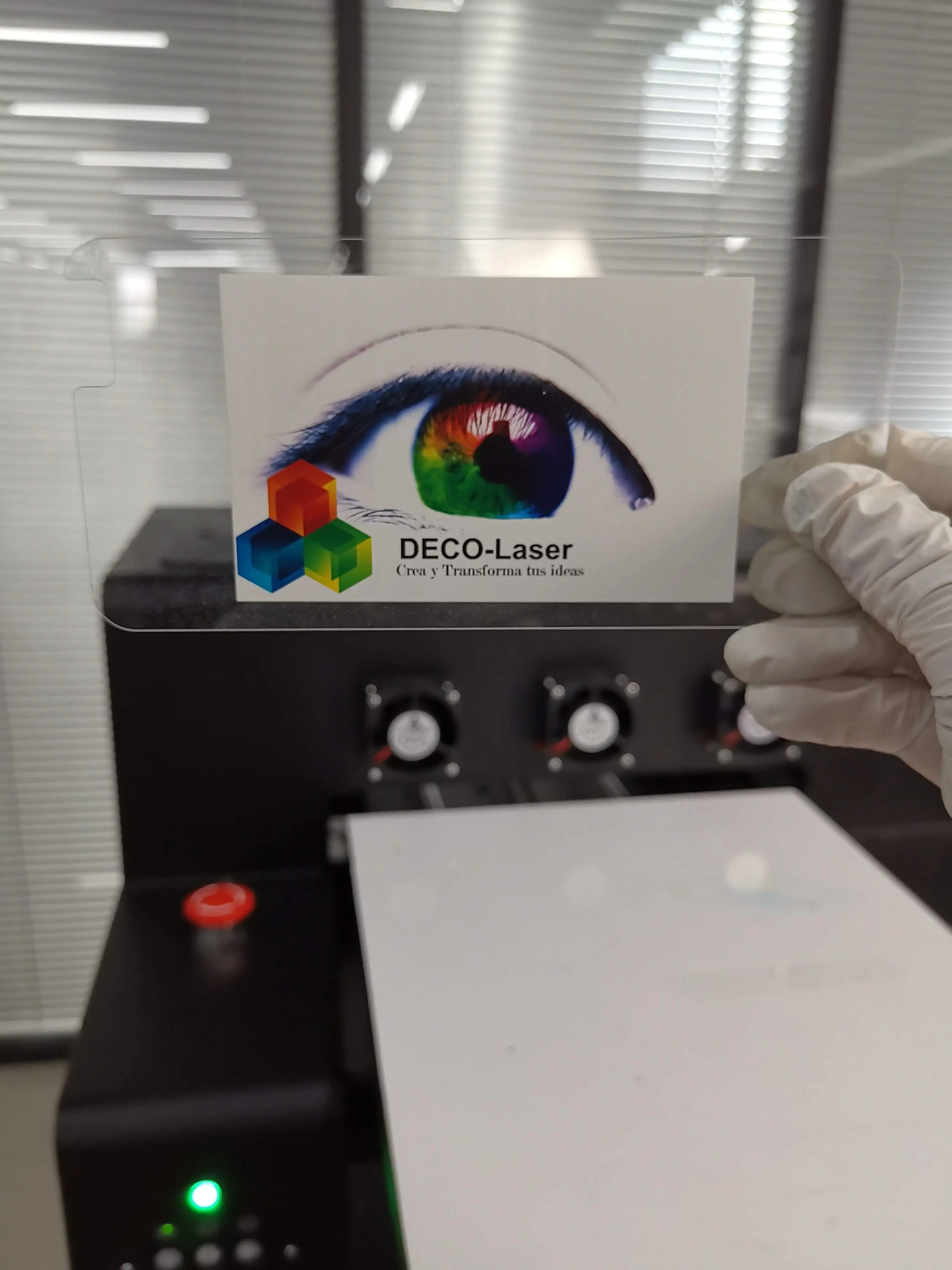

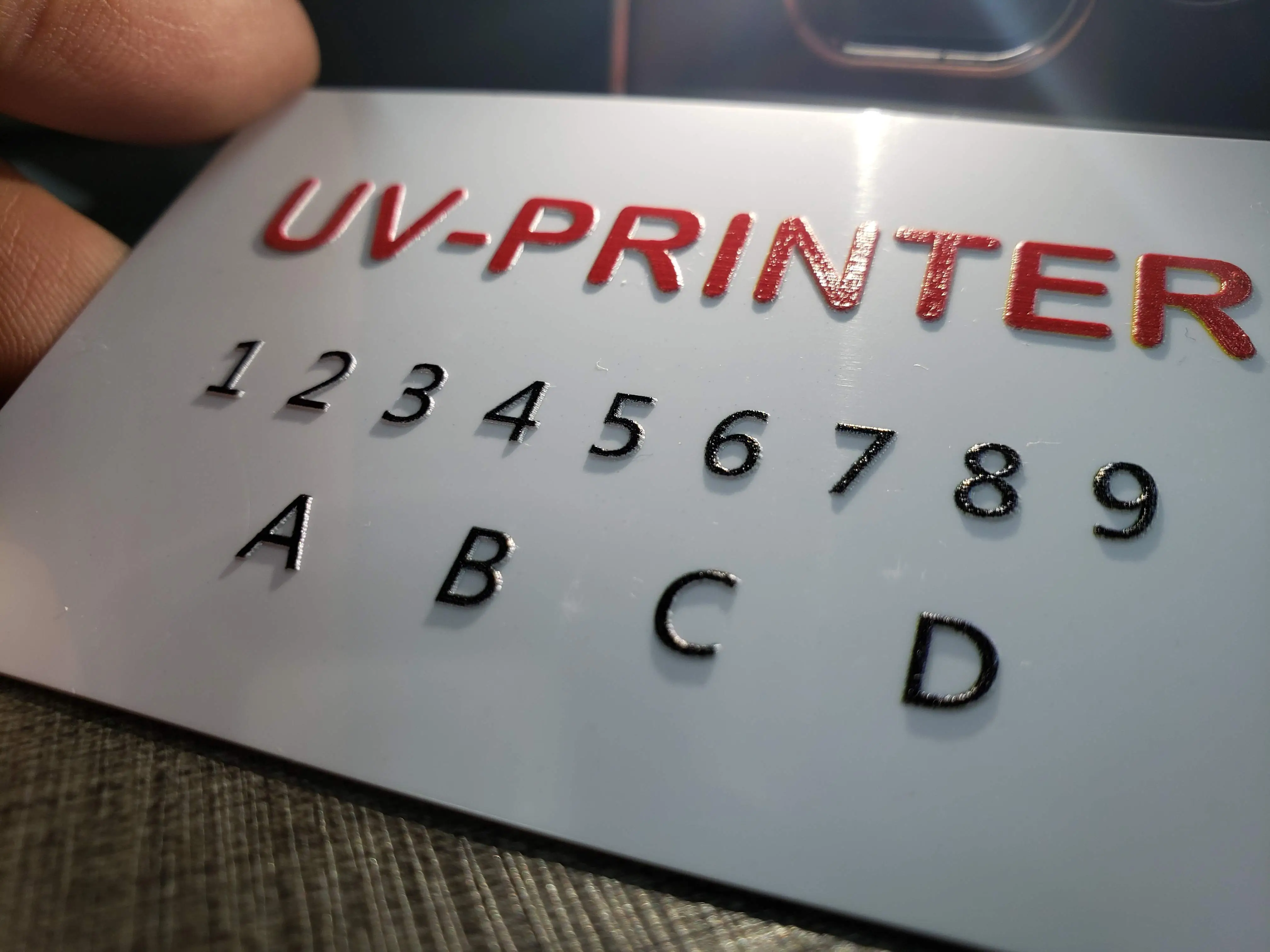

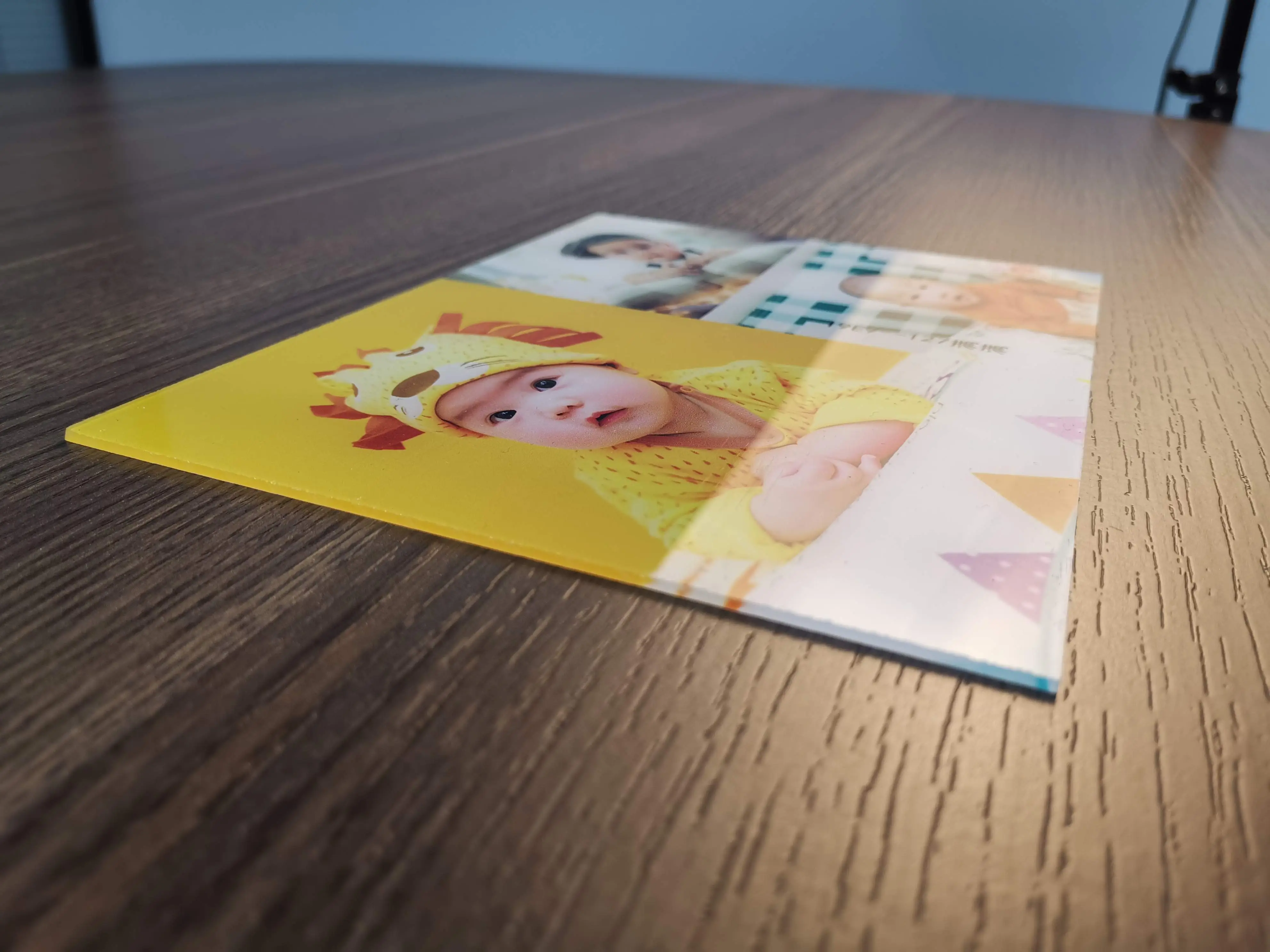

Every sample below was printed directly by the F85V4 UV flatbed card printer using CMYK + white ink on standard PVC and ABS card blanks. No post-processing, no filters.
Complete technical parameters for evaluating the F85V4 as your next UV printer for PVC cards, business cards, ID cards, or membership card production.
| Parameter | Specification |
|---|---|
| Model | GNFEI F85V4 A4 UV Flatbed Card & Business Card Printer |
| Printhead | EPSON L805 or Advanced XP600 (selectable) |
| Print Technology | Smart Bi-directional UV Printing · Auto Nozzle Checking & Cleaning · Variable Ink Droplet |
| Nozzle Configuration | 1440 nozzles (CMYK) + 320 nozzles (White) |
| Max Resolution | 5760 × 1440 dpi |
| Color Configuration | CMYK + WW (white) or CMYK + WV (white + varnish) |
| Platform / Tray Size | 22 × 33 cm with vacuum-assisted flatbed |
| Card Batch Capacity | Up to 25 standard CR80 cards per batch (via dedicated card tray) |
| Max Print Area | 22 × 33 cm (A4) |
| Max Media Thickness | 0 – 15 cm (auto-detection enabled) |
| Print Speed | ~178 seconds / A4 full-color image · ~3 minutes / 25-card batch |
| Ink Consumption | ~1.5 ml / A4 text · ~4.0 ml / A4 full-color · ~$0.003 per card |
| Ink Delivery | CISS with White Ink Stirring Mechanism |
| UV Curing | Advanced water-cooled UV curing system (instant cure) |
| Software | Acro RIP 10.3 (or latest) · VDP Variable Data Printing · Professional Color Management |
| Supported OS | Windows 7 / 8 / 10 / 11 (32-bit & 64-bit) |
| Interface | High-Speed USB 2.0 / 1.1 / 3.0 |
| Operation | Fully Automatic Height Adjustment · Smart Printhead Protection · Automated Tray Movement |
| Working Environment | 15°C – 30°C (59°F – 86°F) · 40% – 70% RH |
| Power Supply | 110 – 240V AC · ~60W Low Energy Consumption |
| Dimensions (L×W×H) | Printer: 61 × 51 × 51 cm · Package: 68 × 58 × 56 cm |
| Weight | Net: 32 kg · Gross: 48 kg |
| Certifications | CE Certified |
| Warranty & Support | 12-Month Manufacturer Warranty + Lifetime Technical Support |
| Compatible Card Types | PVC · ABS · PET · Metal · Acrylic · NFC · Magnetic Stripe · RFID · CR80 standard size |
Core questions about the F85V4 as a UV printer for PVC cards, business cards, and ID cards — from print quality and batch capacity to ROI and after-sales support.
Q1. What types of cards can the F85V4 UV card printer print on?
Q2. How many PVC cards can it print in one batch?
Q3. How does this UV card printer compare to traditional dye-sublimation ID card printers?
Q4. Can this machine print variable data — unique names, barcodes, and photos per card?
Q5. What is the cost per printed card?
Q6. Does it print on both sides of a PVC card?
Q7. Can it print spot UV varnish for 3D effects on business cards?
Q8. Is there a minimum order? Can I print just 1 card?
Q9. Can this machine print on NFC cards, RFID cards, and magnetic stripe cards?
Q10. What is the price of the GNFEI F85V4 UV card printer?
Q11. Can I start a UV card printing business with this machine?
Q12. How does GNFEI support customers after purchase?
The F85V4 handles up to 25 cards per batch and suits businesses producing up to 500+ cards per day. For higher throughput or larger print formats, these two professional UV printers offer the same card printing capability at significantly greater scale.

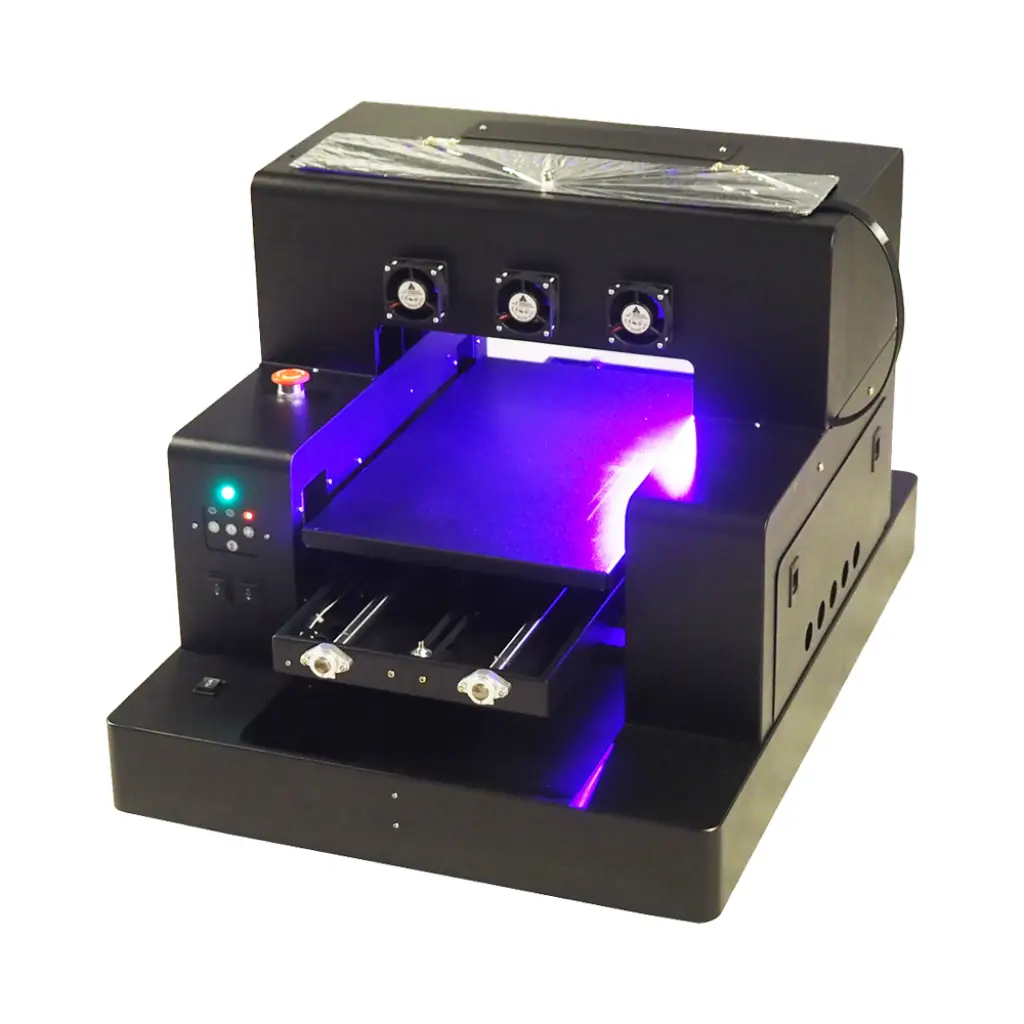

The F85V3 offers an A3 print bed (42×30 cm) — nearly double the F85V4's printable area. Print 40–50 CR80 cards per batch, or handle larger card formats and custom-size card blanks that don't fit in an A4 tray. Same CMYK + White + Varnish ink system, higher hourly output — ideal for card printing businesses processing 1,000+ cards per day.

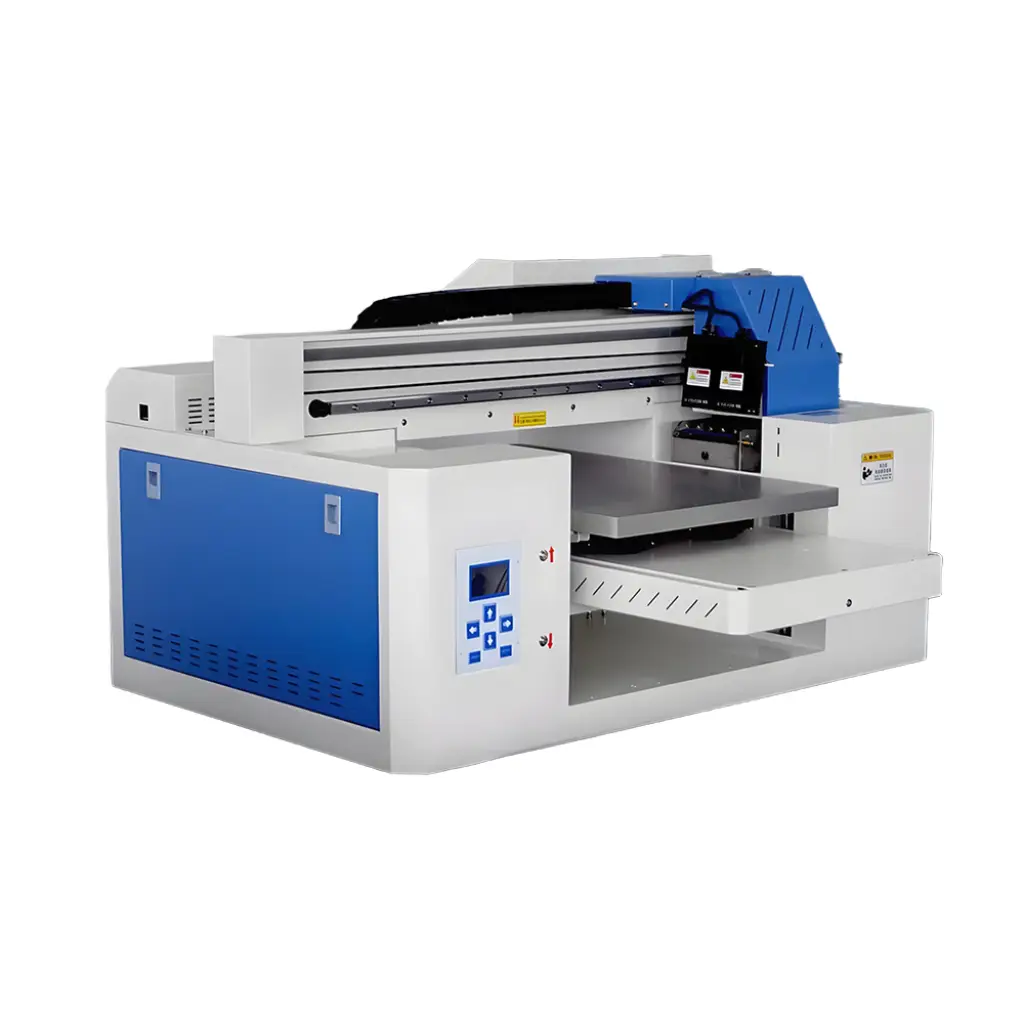

The GNFEI 4060 is a commercial-grade industrial UV flatbed printer with a 40×60 cm print bed and dual printhead configuration — producing 100+ cards per batch. Designed for high-volume UV card printing operations: card bureaus, loyalty program card manufacturers, and promotional product suppliers who need to run thousands of cards per hour at consistent quality.
