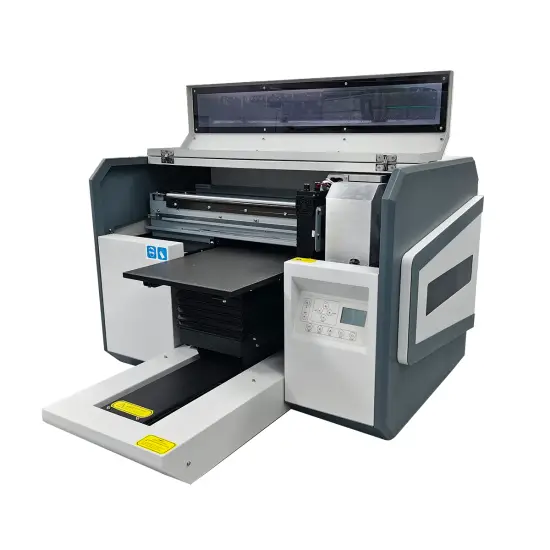

Industrial A3 UV Flatbed Printer with Epson i3200 Head
- Model: FI32V
- Weight: 60.00kg
- Dimensions: 100.00cm x 90.00cm x 59.00cm
- Location: $4000-4800
Payment terms: Bank transfer and any available options
Lead time: 3-5 working days
MOQ: 1pcs
Challenge the Printing Limits with Epson i3200
The FI32V A3 UV Flatbed Printer is a high-speed, high-resolution digital inkjet printing solution engineered to redefine customization. Equipped with the industry-leading Epson i3200 printhead, it achieves excellent photo-quality resolution up to 1200 dpi with up to 8-color output capabilities.

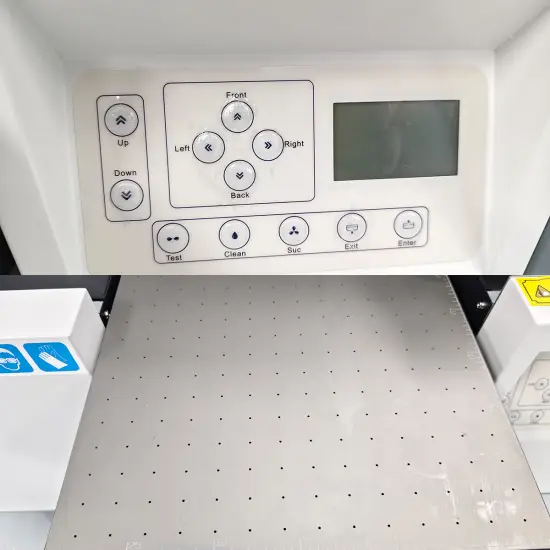

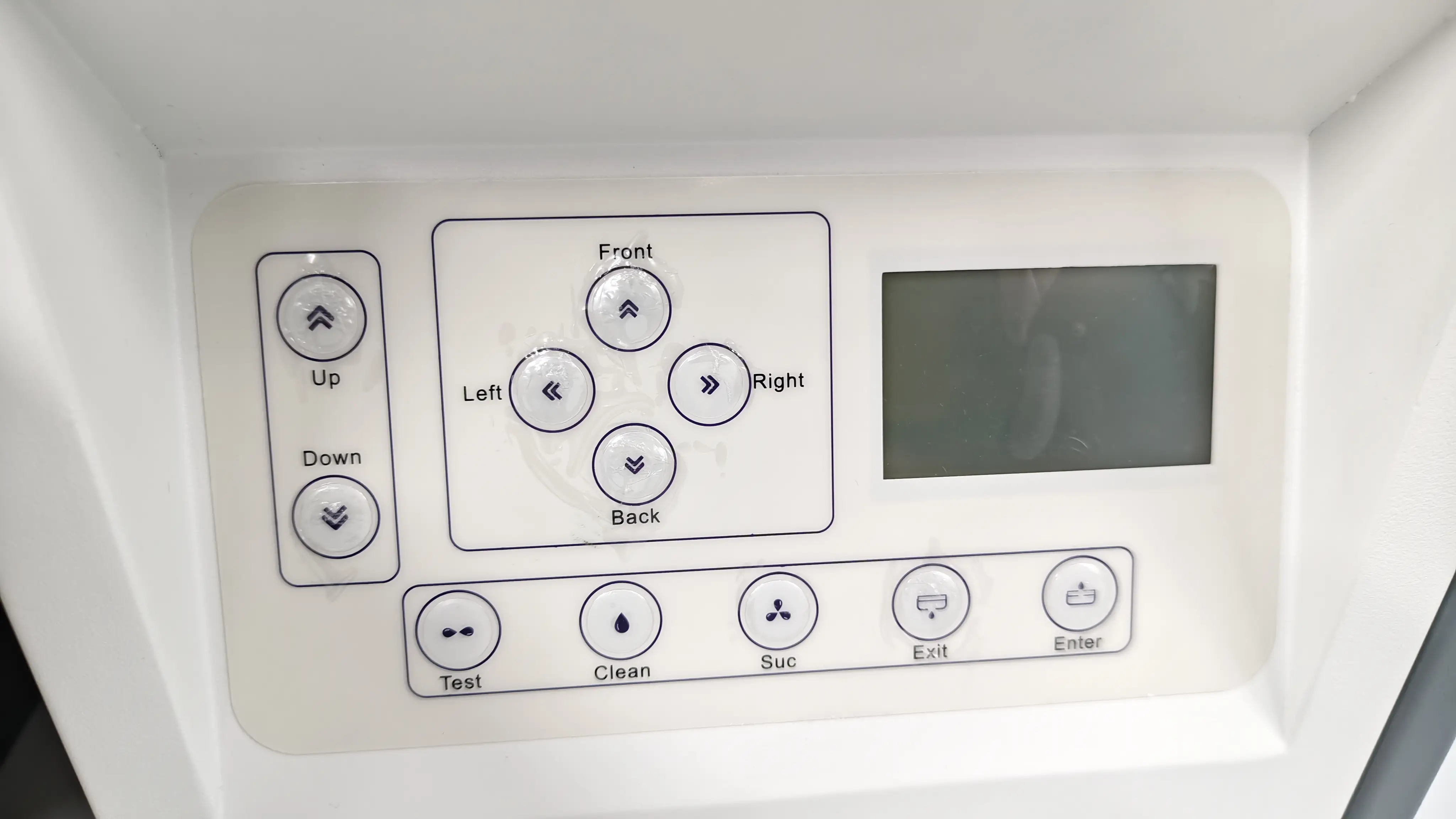

Designed with a compact, lightweight body to minimize space usage, the FI32V boasts an intuitive operations panel, a lifting vacuum table with flatness controlled under 0.1mm, and a capping station system to protect the nozzle. It supports simultaneous output of white, color, and varnish, providing a glossy embossed effect on all substrates.
Designed for Infinite Wonder & Efficiency
See the FI32V in Action
Watch the high-speed Epson i3200 printhead apply vibrant, detailed designs on multiple items simultaneously.
FI32V Technical Parameters
| Printhead Configurations | |
| Print Head Type | Epson i3200(8)S1-HD (1 pcs) |
| Number of Nozzles | 3200 active nozzles |
| Nozzle Row Matrix | 8 rows (Distance: 1/300 inch) |
| Nozzle Spray Range | 2 - 3 mm |
| Effective Print Width | 33.8 mm |
| Droplet Ejection Performance |
5 pl at 43.2kHz (2 levels grayscale) 6, 12.5 pl at 21.6kHz (3 levels grayscale) 3.8, 6.2, 9.3 pl at 21.6kHz (4 levels grayscale) |
| Printing & System Performance | |
| Max Print Size | 297 * 420 mm (A3 flatbed area) |
| Max Print Height | 0 - 85 mm adjustable |
| Print Speed | 0.28 - 3 sqm/h |
| Highest Resolution | 720 * 1200 dpi |
| Print Version support | Simultaneous White + Color + Varnish printing |
| Supported Print Modes | CMYK + W + V / CMYKLcLm + W / CMYKLcLmLkLlk / CMYK |
| Control RIP Software | Future RIP (Included) / PhotoPrint / MainTop |
| Physical & Environment Details | |
| Power Input | AC 110V/220V, 50Hz - 60Hz |
| Connection Interface | High-speed Network cable connection |
| Ink Formulation | Environmental UV curing ink |
| Operating Environment | Temperature: 20°C - 28°C | Humidity: 35% - 65% (Optimal) |
| Graphic Compatibility | TIFF, JPEG, EPS, PDF, PNG, etc. |
| Printer Dimensions | 1000mm (L) * 902mm (W) * 592mm (H) |
| Packing Size & Weight | 1110mm * 1010mm * 760mm | Net Weight: 60 kg | Gross Weight: 80 kg |
| Machine Base Color | Grey, White & Black |
FI32V Detailed Showcase

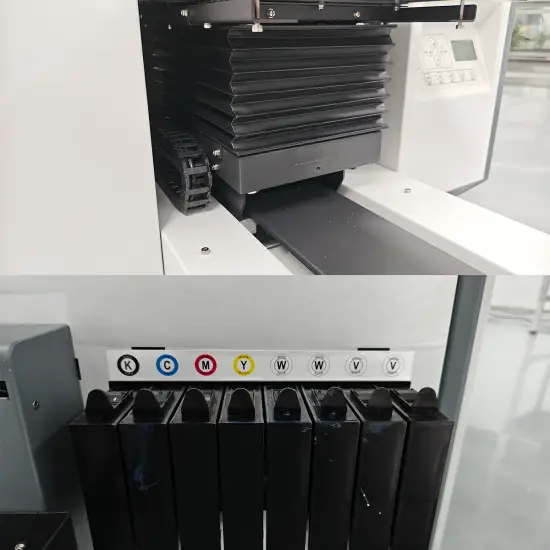

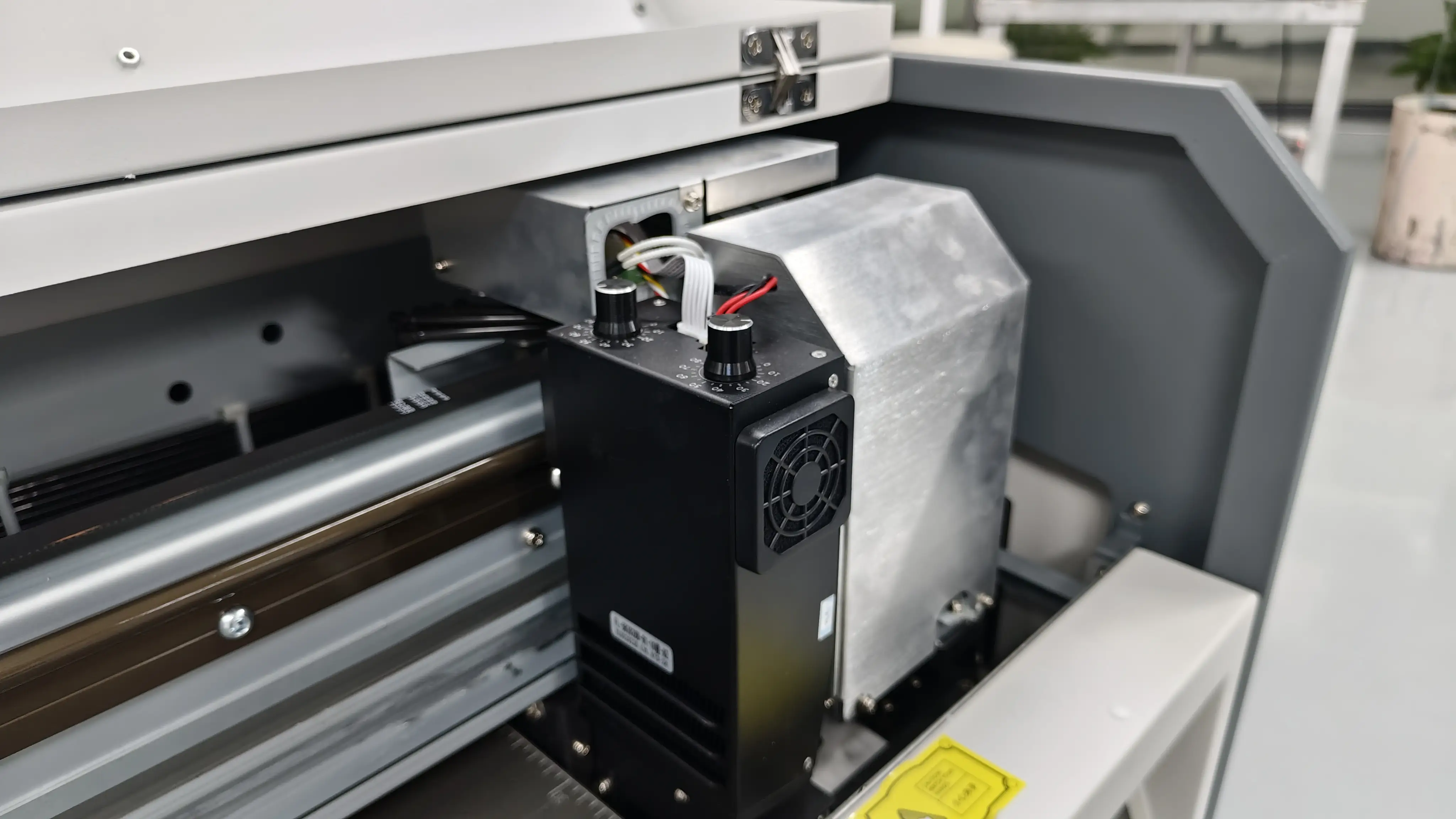

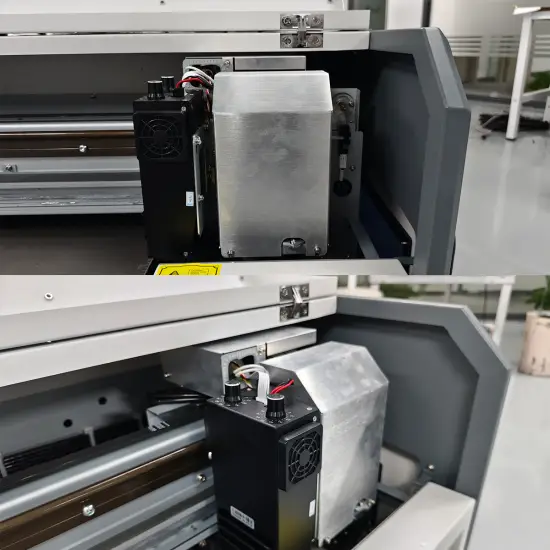

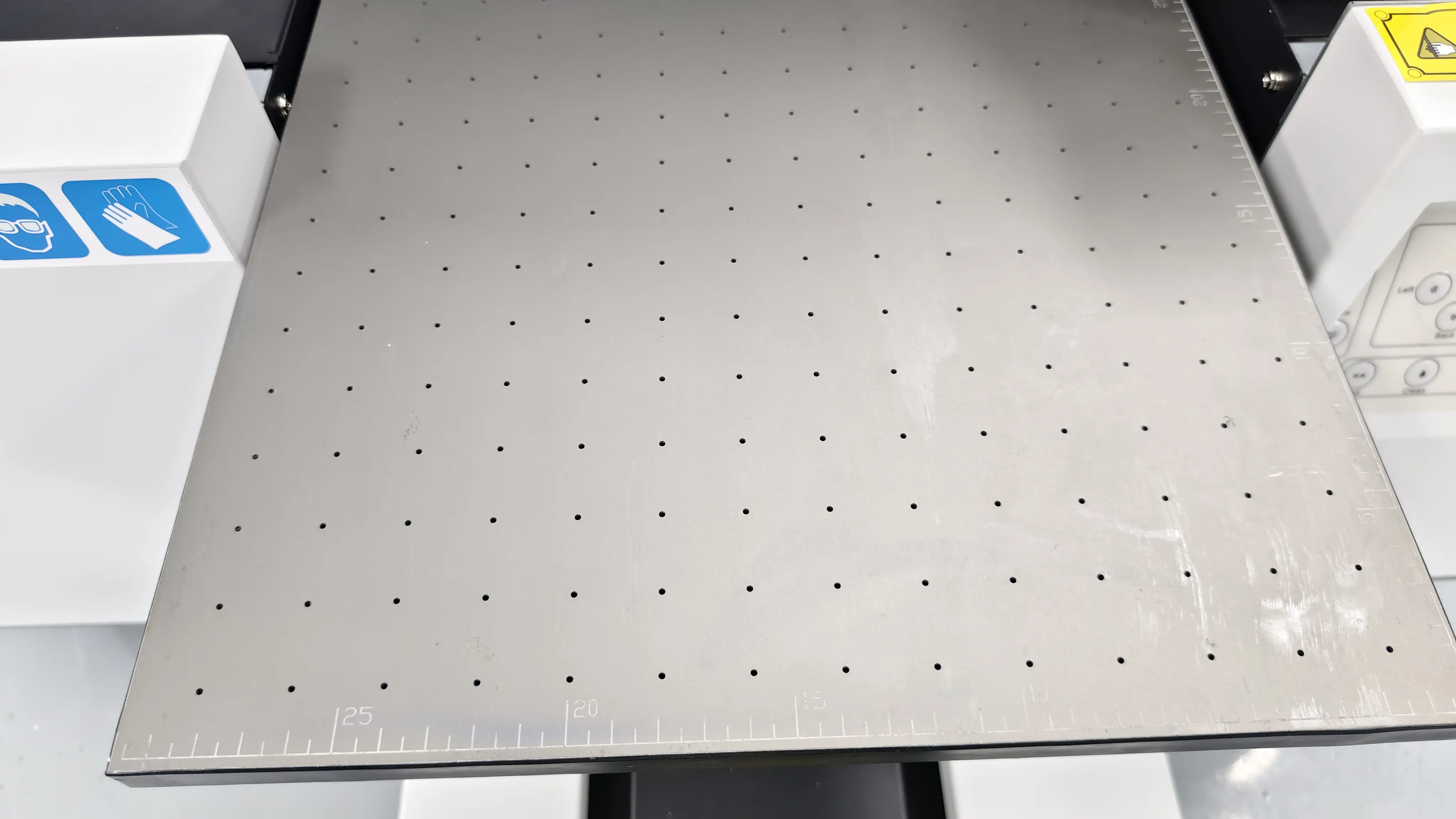

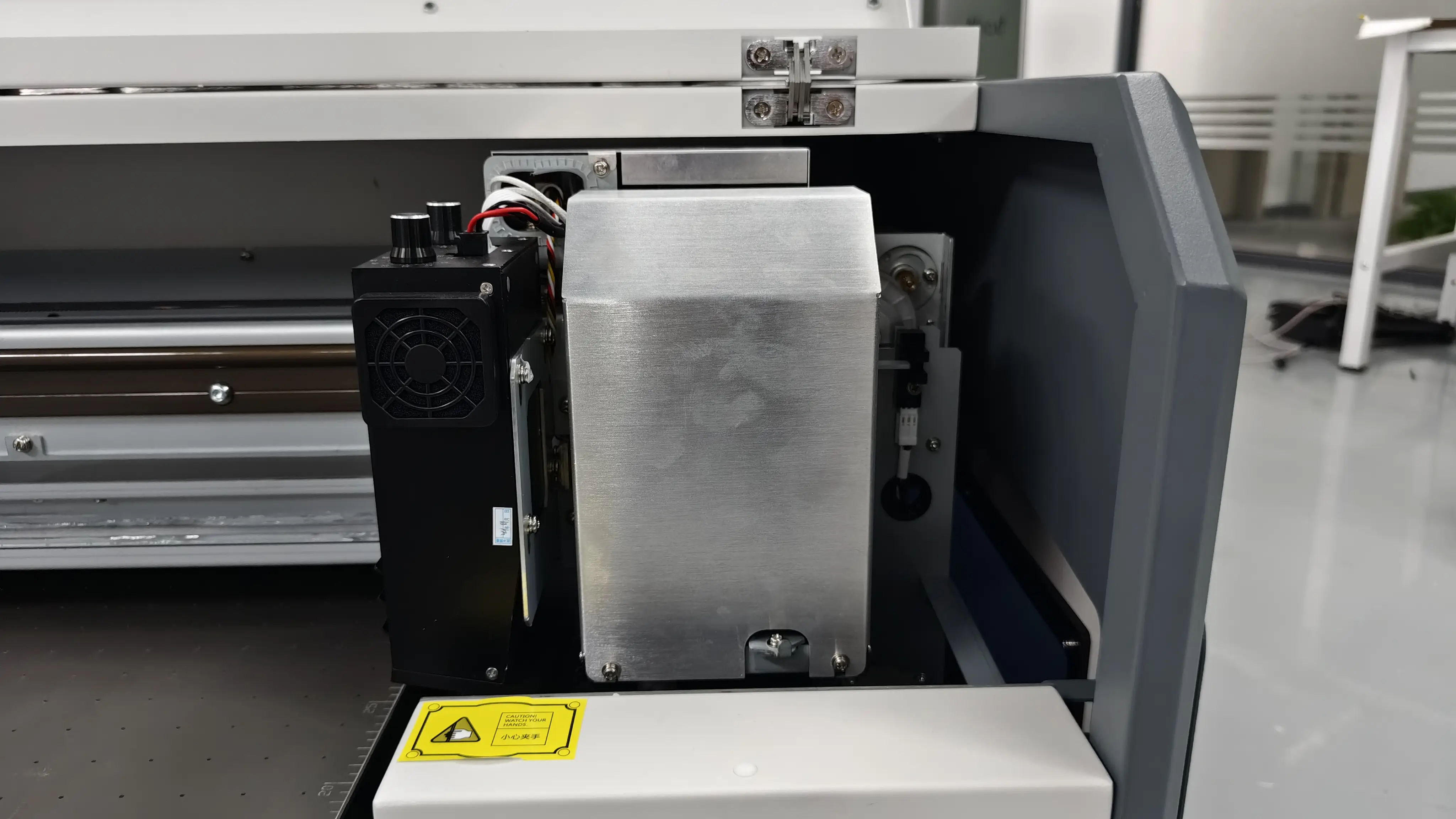

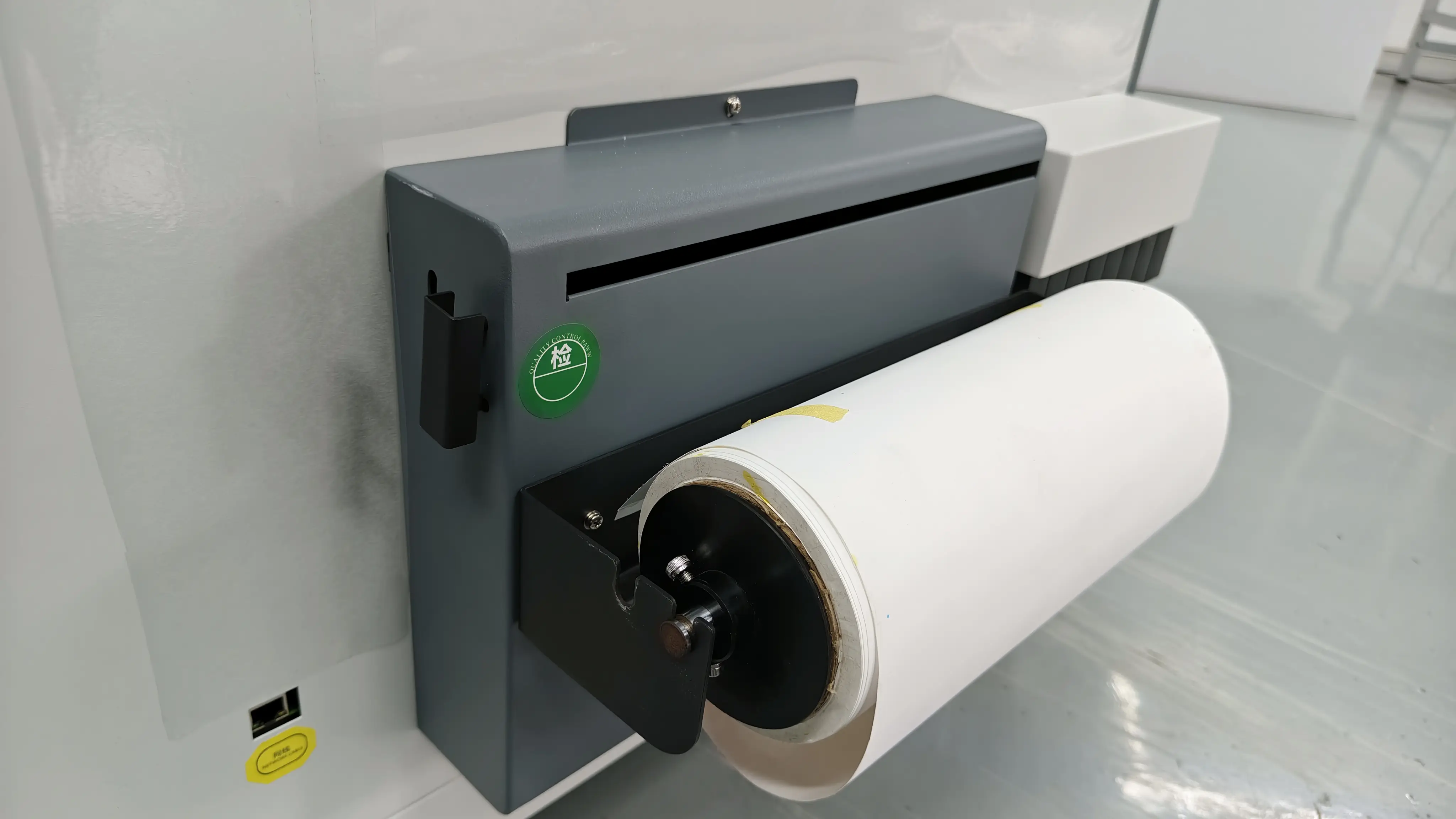

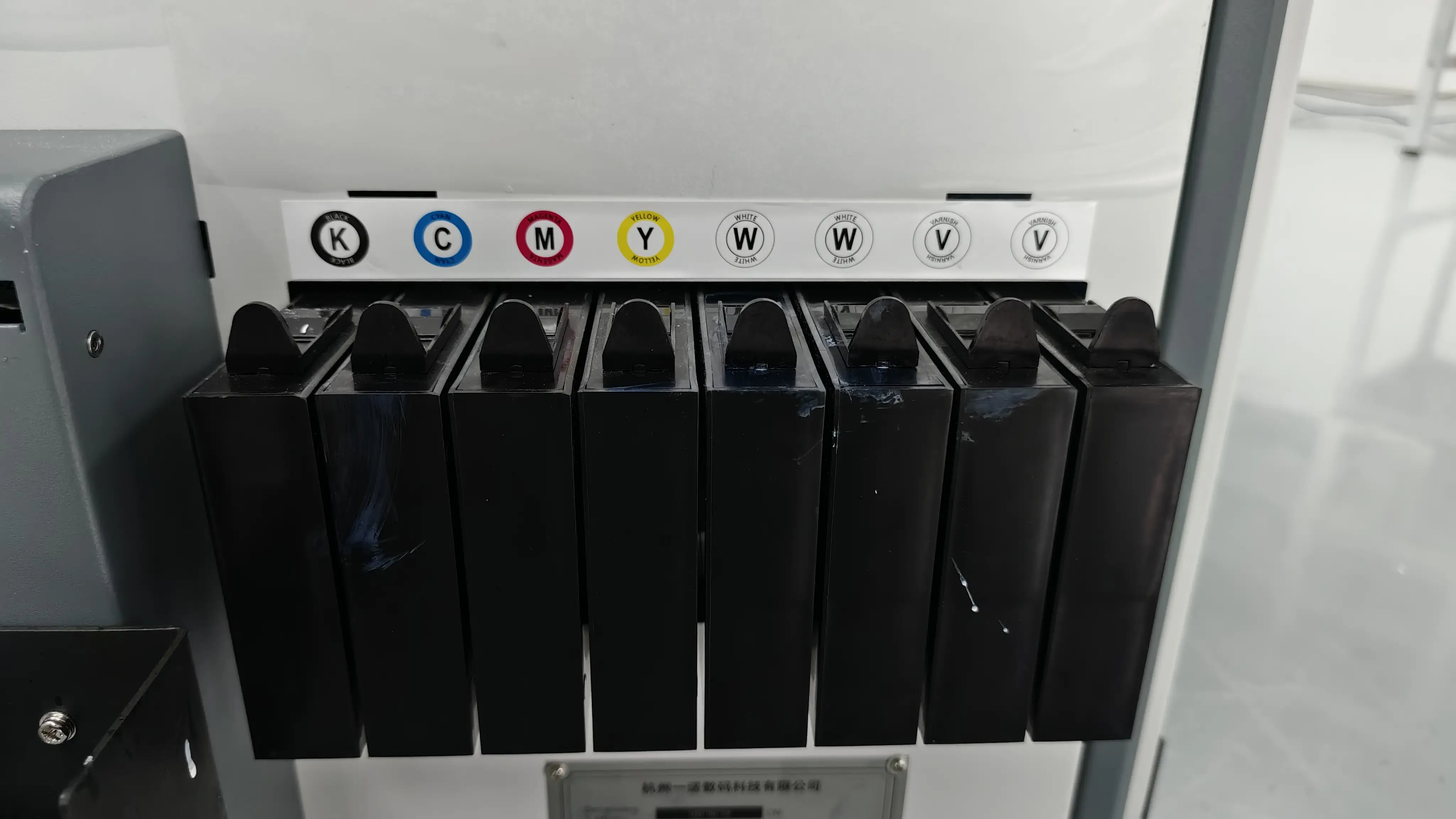

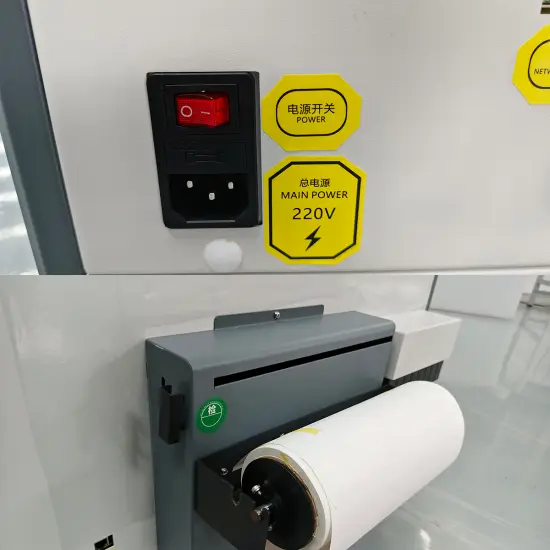

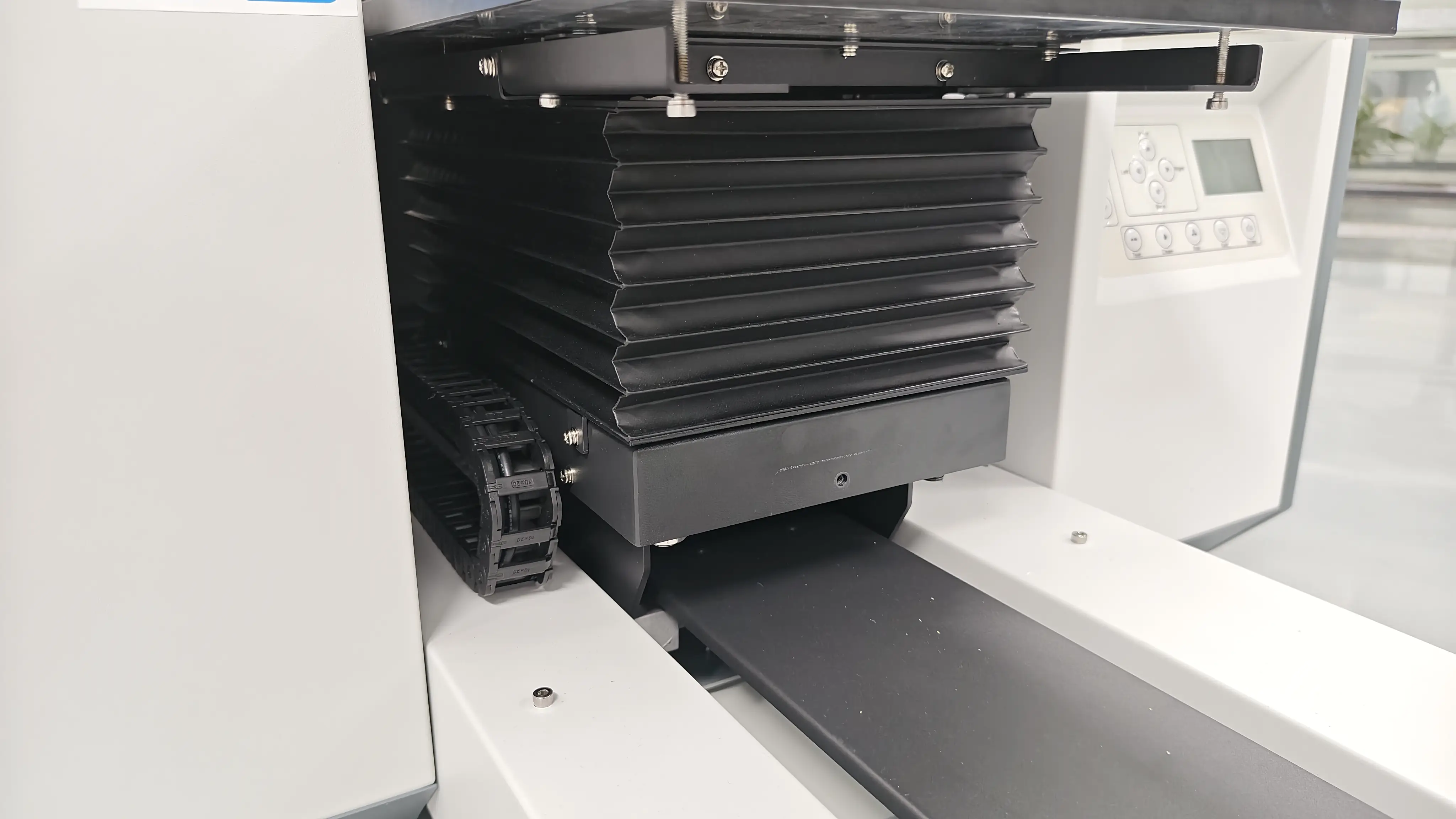

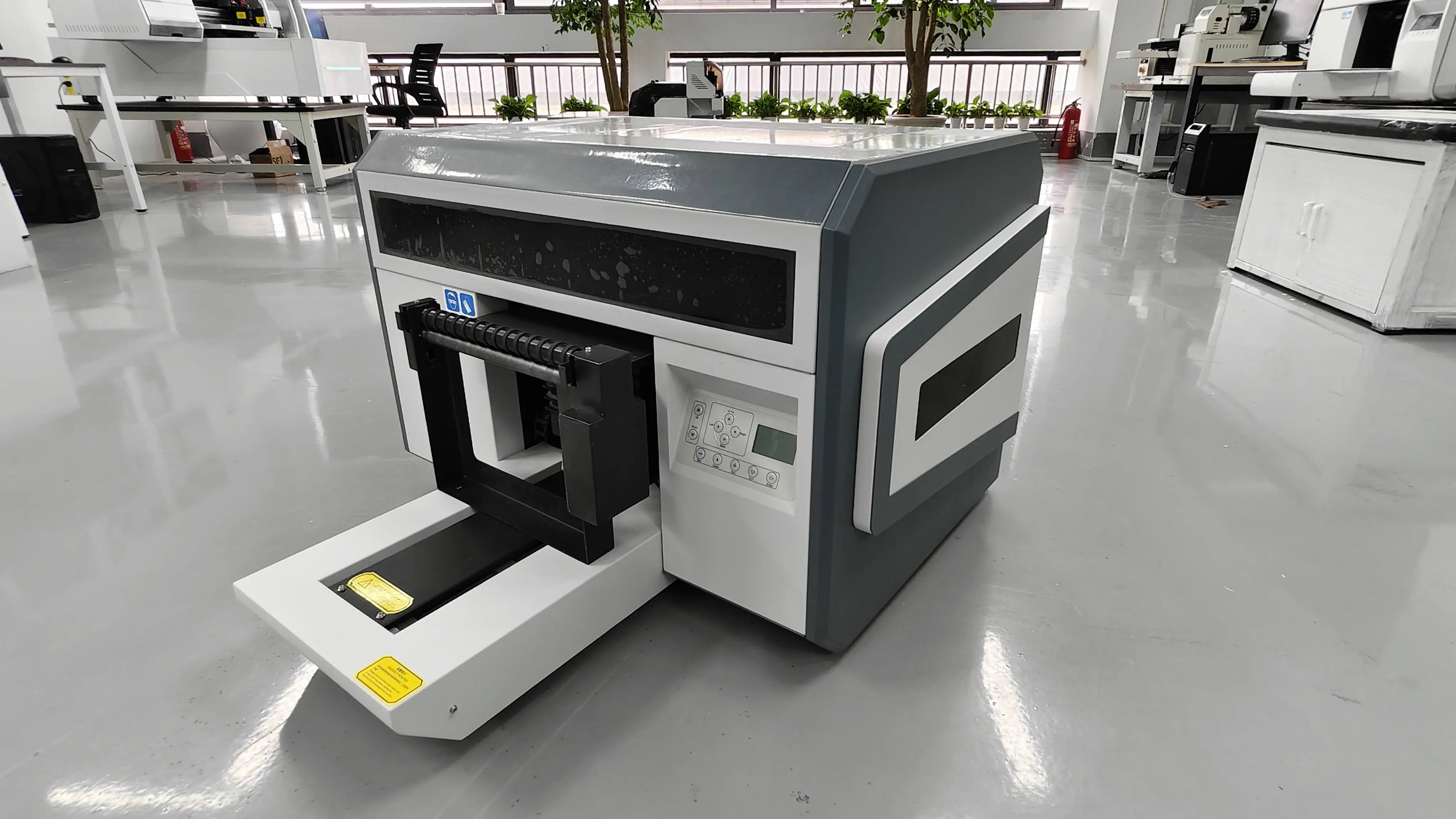

Close-up highlights of the Epsom i3200 printhead, vacuum honey-comb bed, capping motor assembly, ink circulation system, and overall mechanical setup.
