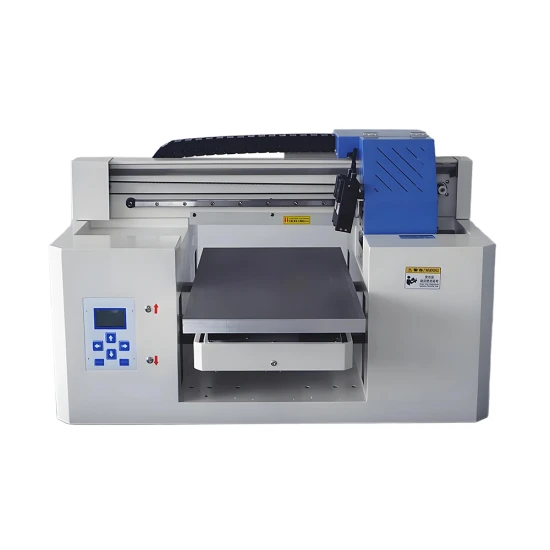

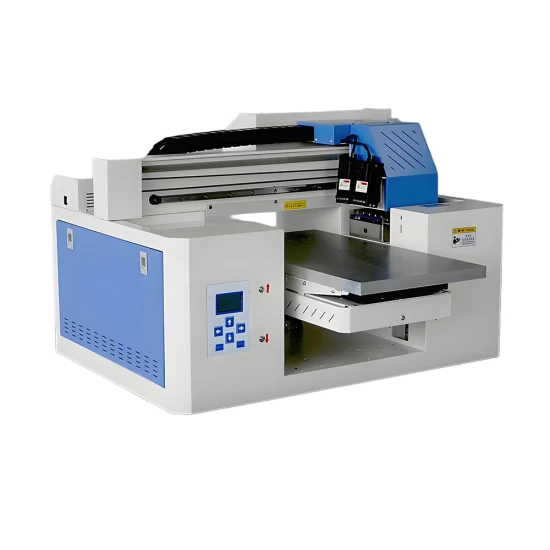

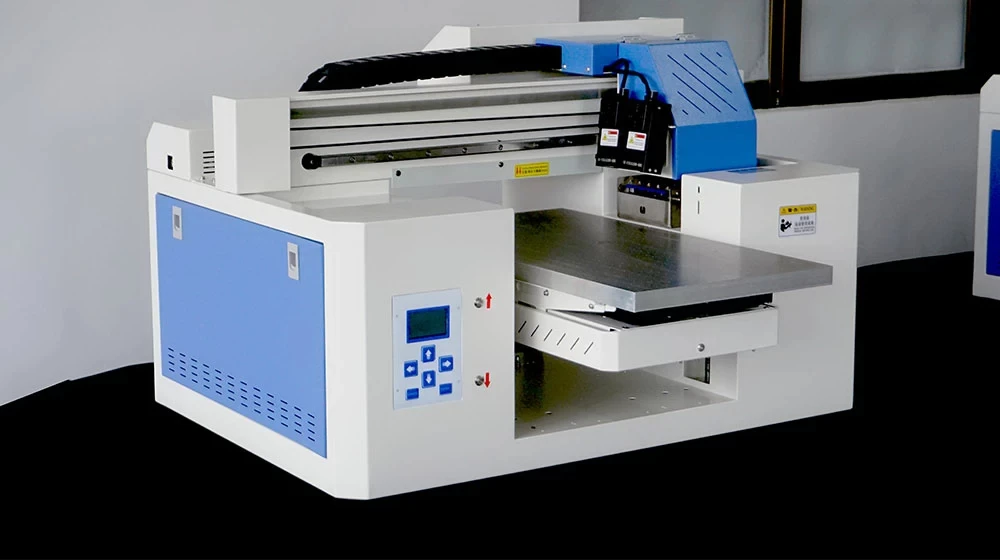

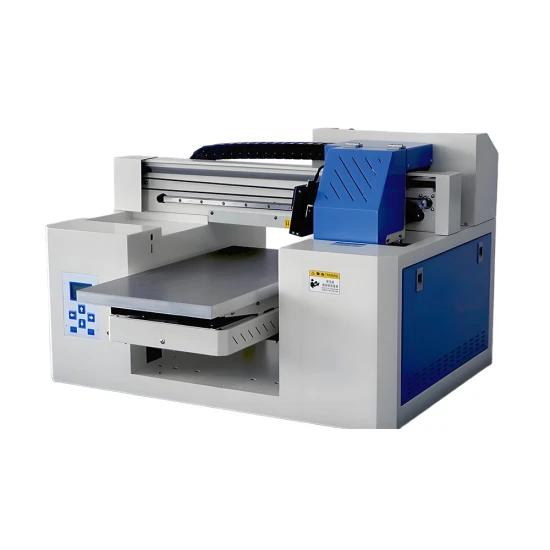

A3 Dual Head UV Printer Support Rotary and UV DTF Printing
- Model: F50V3
- Weight: 55.00kg
- Dimensions: 78.00cm x 76.00cm x 59.00cm
- Location: $2400-2800
Payment terms: Bank transfer and any available options
Lead time: 3-5 working days
MOQ: 1pcs
Versatile A3 UV Printer with Dual Heads, Rotary and DTF Features
The A3 Dual Head UV Printer is designed for commercial and industrial applications, delivering high-performance printing on flat, cylindrical, and DTF substrates. Featuring dual Epson printheads, this multifunctional printer ensures vivid color reproduction, clear text, and advanced special effects, such as embossed textures and varnish finishes. Its ability to print directly onto uneven surfaces expands versatility while UV DTF capabilities allow seamless sticker and label production.
Industrial clients benefit from enhanced efficiency and reduced production costs, thanks to features like electronic height adjustment and a vacuum platform that accommodates substrates up to 15cm thick. With the substantial return on investment provided by its multifunctionality and durable technology, this UV DTF printer is an asset for businesses seeking cutting-edge results. Whether creating crystal stickers, printing bottles, or tackling unique materials, it offers scalability and exceptional value.
Compact yet robust, this printer is ideal for small workshops, midsize factories, and design studios requiring professional finishing on an array of surfaces.
Key Features

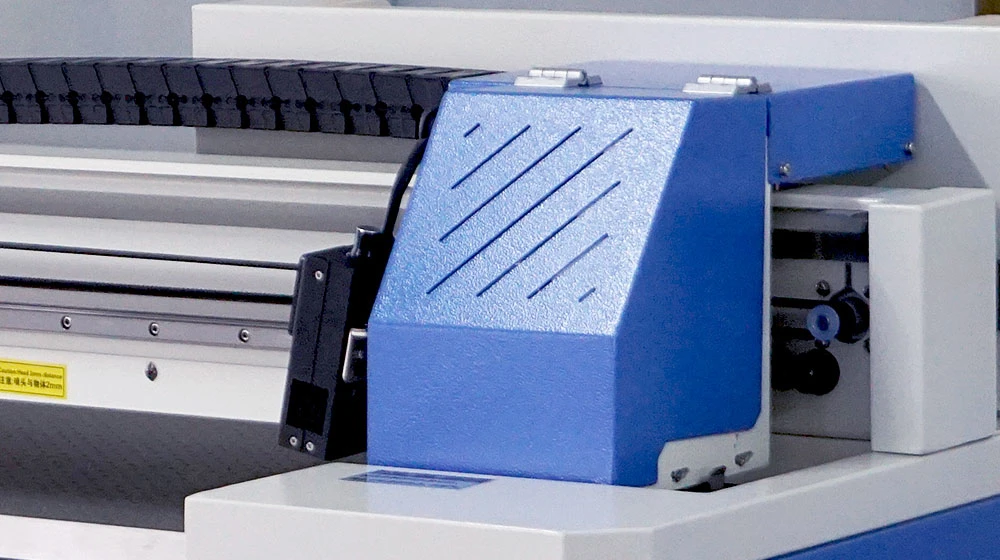

- Precision dual Epson print heads for unmatched speed and resolution.
- Vivid color and specialized effects, including full white, varnish, and embossing layers.
- UV DTF printing supports fast, high-quality production of peel-off stickers and labels.

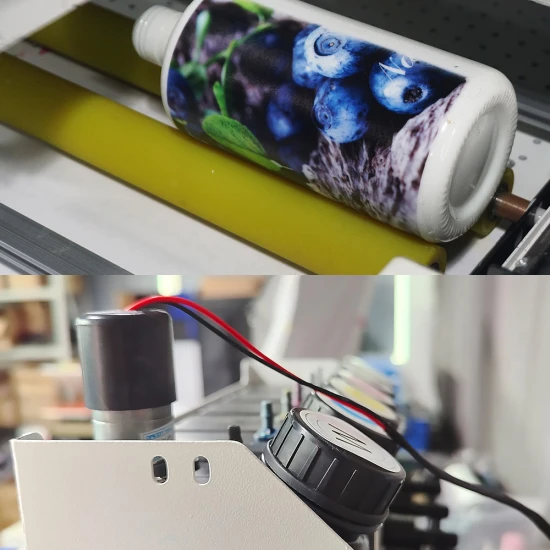

- Rotary cylinder printing offers seamless application on bottles, tumblers, and mugs.

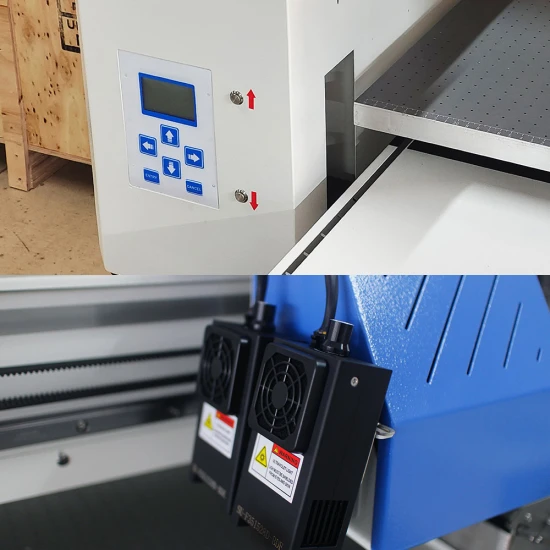

- Smart electronic height adjustment handles substrates up to 15cm for versatility.

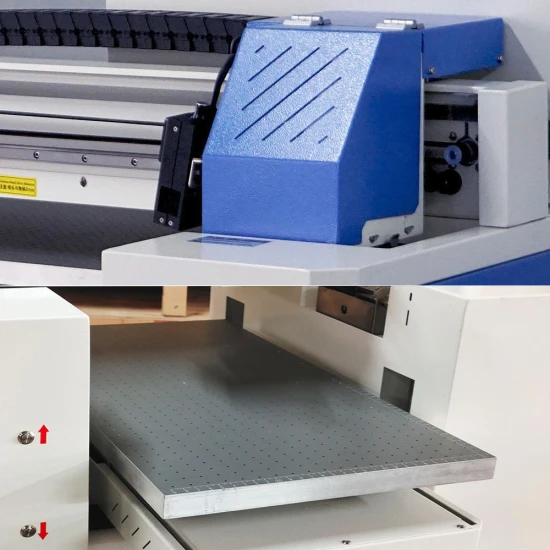

- Adjustable vacuum table ensures warping-free stability for delicate films and sheets.

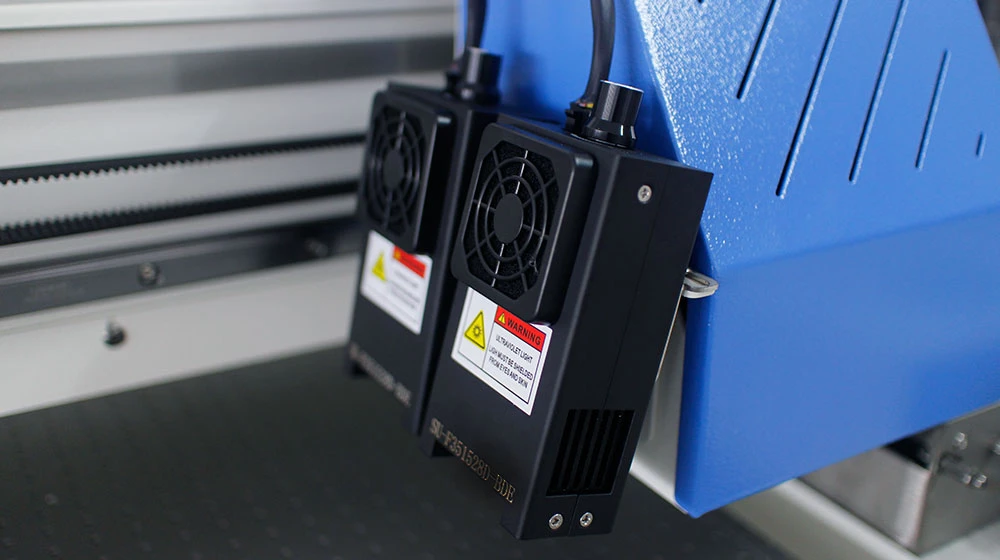

- Dual UV LED air-cooling system ensures continuous professional-grade performance.
Specifications
| Specifications | Technical Details |
|---|---|
| Model Number | F50V3 UV DTF Printer |
| Printhead Configuration | Dual Epson L805/XP600 Heads for High Precision Printing |
| Print Technology | Smart Bi-directional Printing, Auto Nozzle Checking & Cleaning System, Variable Ink Droplet Technology |
| Nozzle Configuration | CMYK+WW; CMYK+WV |
| Maximum Print Resolution | Up to 5760x1440 dpi |
| Ink Consumption | Ultra-low Consumption: ~1.5ml per A4 size text / ~4.0ml per A4 size full-color image |
| Compatible Ink | Premium Textile Pigment Ink |
| Color Configuration | CMYK+White+Varnish, Embossing |
| Platform / Tray Size | Adjustable Vacuum Platform, 32 x 50 cm |
| Maximum Print Area | 32 x 50 cm |
| Max Media Thickness | Up to 15 cm with Auto Height Detection |
| Print Speed | Full A3 Prints in ~173 seconds |
| Ink Delivery System | CISS System with White Ink Circulation |
| Software | Acro RIP 10.3 (or latest versions) Professional Color Management Software |
| Cooling System | High-grade Dual UV LED Air Cooling |

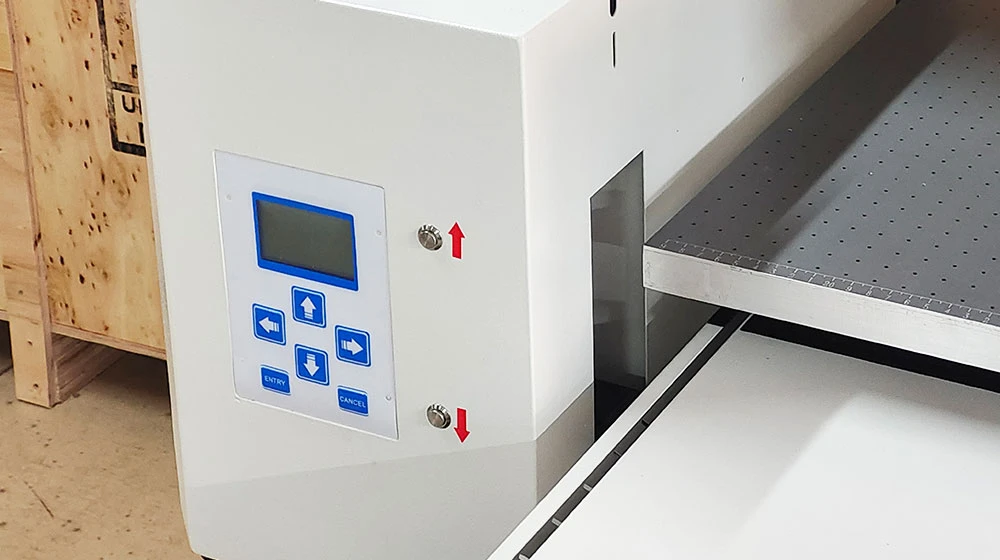

| Operation & Control | Automatic Height Adjustment, Smart Printhead Protection, Automated Tray Movement |
| Data Interface | High-Speed USB 2.0 / 1.1 / 3.0 Compatible Port |
| Supported OS | Windows 7 / 8 / 10 / 11 (32-bit & 64-bit Compatible) |
| Working Environment | 25°C-30°C (~77°F-86°F), ~50% RH |
| Power Requirements | AC 110-240V, 50/60Hz, Energy Efficient Mode |
| Warranty & Support | 12-Month Manufacturer Warranty with Lifetime Technical Support |
| Dimensions (L x W x H) | 78 × 76 × 59 cm (Package: ~91 × 59 × 70 cm) |
| Weight | Net: 55 kg, Gross: 68 kg |
| Applications | Custom Bottles, Tumblers, Crystal Stickers, Cylindrical Items, UV-printed Labels, Promotional Goods |
Applications & Industry Potential
This multifunction printer is ideal for diverse industries, including promotional goods, custom packaging, billboard designs, and retail displays. Its durable technology supports high-volume production for businesses delivering intricate designs on varied substrates. Perfect for businesses seeking scalability and unlimited creative potential.
UV DTF functionality enables on-demand creation of adhesive decals for automotive, construction, and electronics industries. Rotary printing capabilities make it invaluable for producing branded drinkware and custom cylindrical products.
