Credit Card & Business Card Printer
- Model: F85V4
- Weight: 48.00kg
- Dimensions: 70.00cm x 54.00cm x 53.00cm
- Location: $1400-1880
High-precision credit card printing with advanced LED UV technology

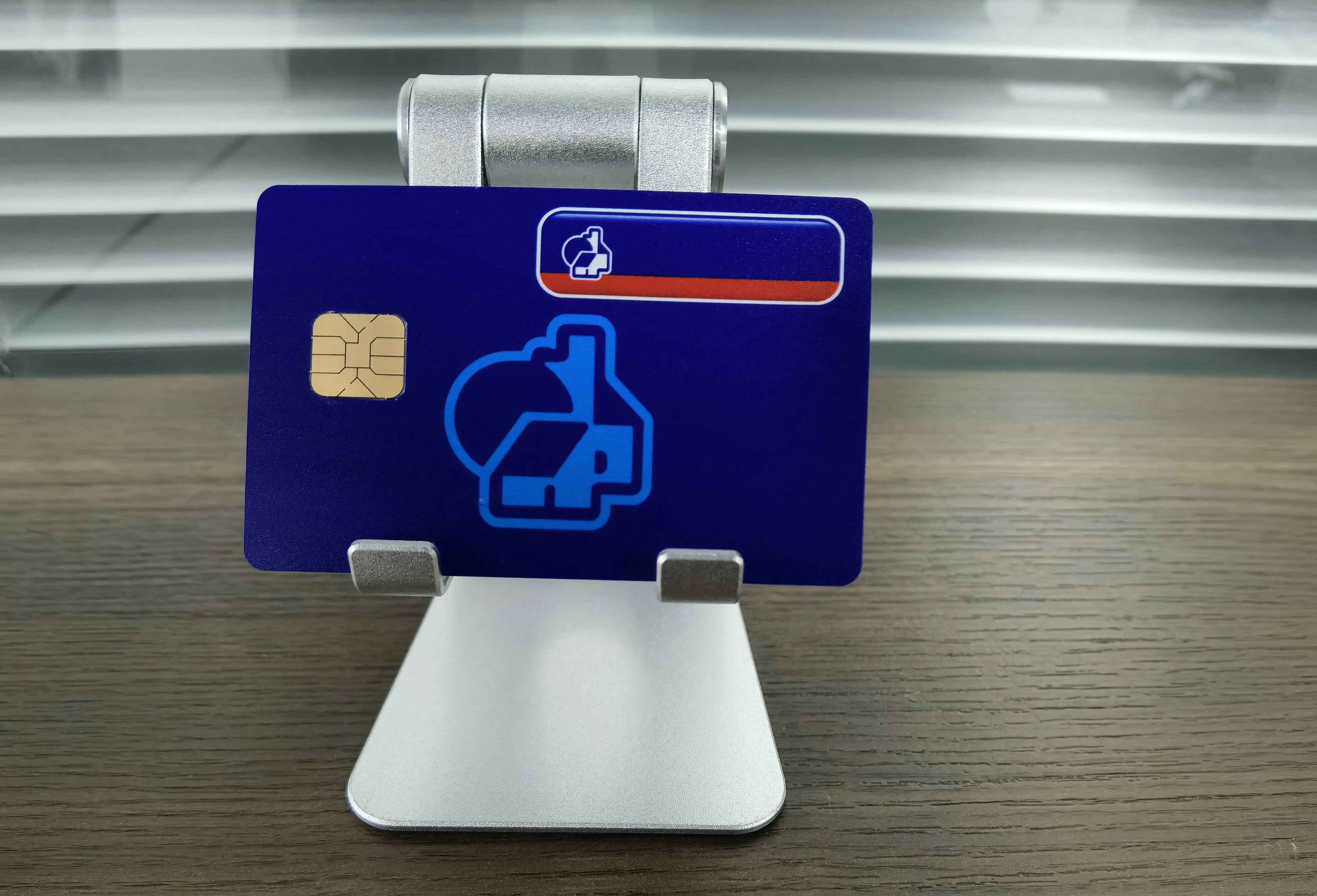

The Spot A4 LED UV Card Printer sets the benchmark for personalized credit card and ID badge production. Designed with advanced LED UV technology, it delivers razor-sharp prints, vibrant colors, and durable finishes across PVC, acrylic, metal, and wooden materials.
Engineered with an efficient vacuum platform, this printer ensures high-quality double-sided printing without adhesives. Its instant UV curing system creates waterproof and abrasion-resistant cards, delivering reliability for high-demand environments like banks and retail chains.
Optimize your operations with batch production thanks to its spacious A4 tray, supporting advanced features like white ink and spot varnish for embossed 3D effects. Compact yet robust, the Spot A4 transitions seamlessly across project scales, empowering businesses with professional-grade results and operational efficiency.
Key Features
- Precision-engineered vacuum platform to prevent card movement during printing, ensuring consistent production and minimal downtime.

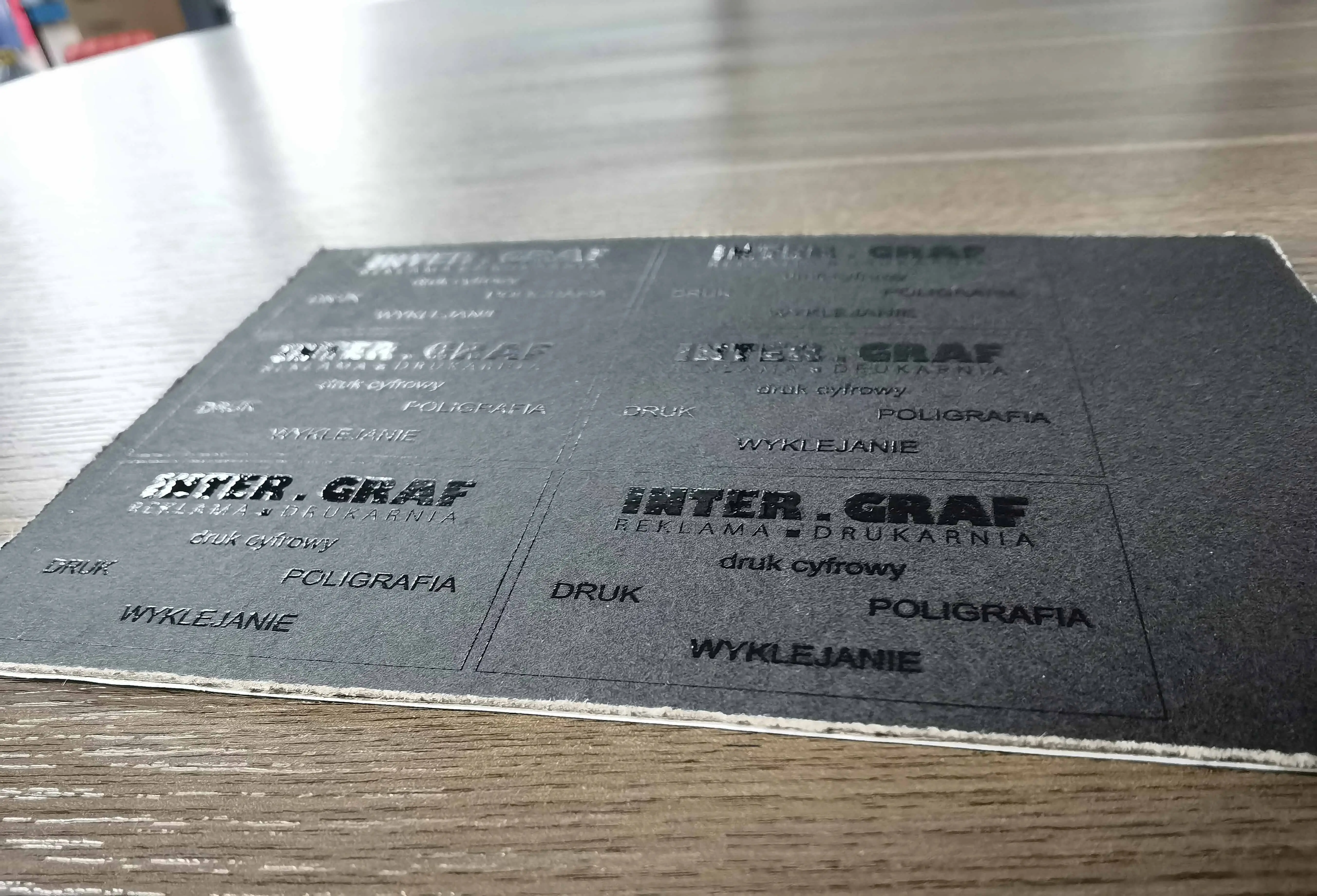

- Enhanced 3D effects and spot UV varnish capabilities for embossed text, raised logos, and high-gloss finishes that add a premium touch.

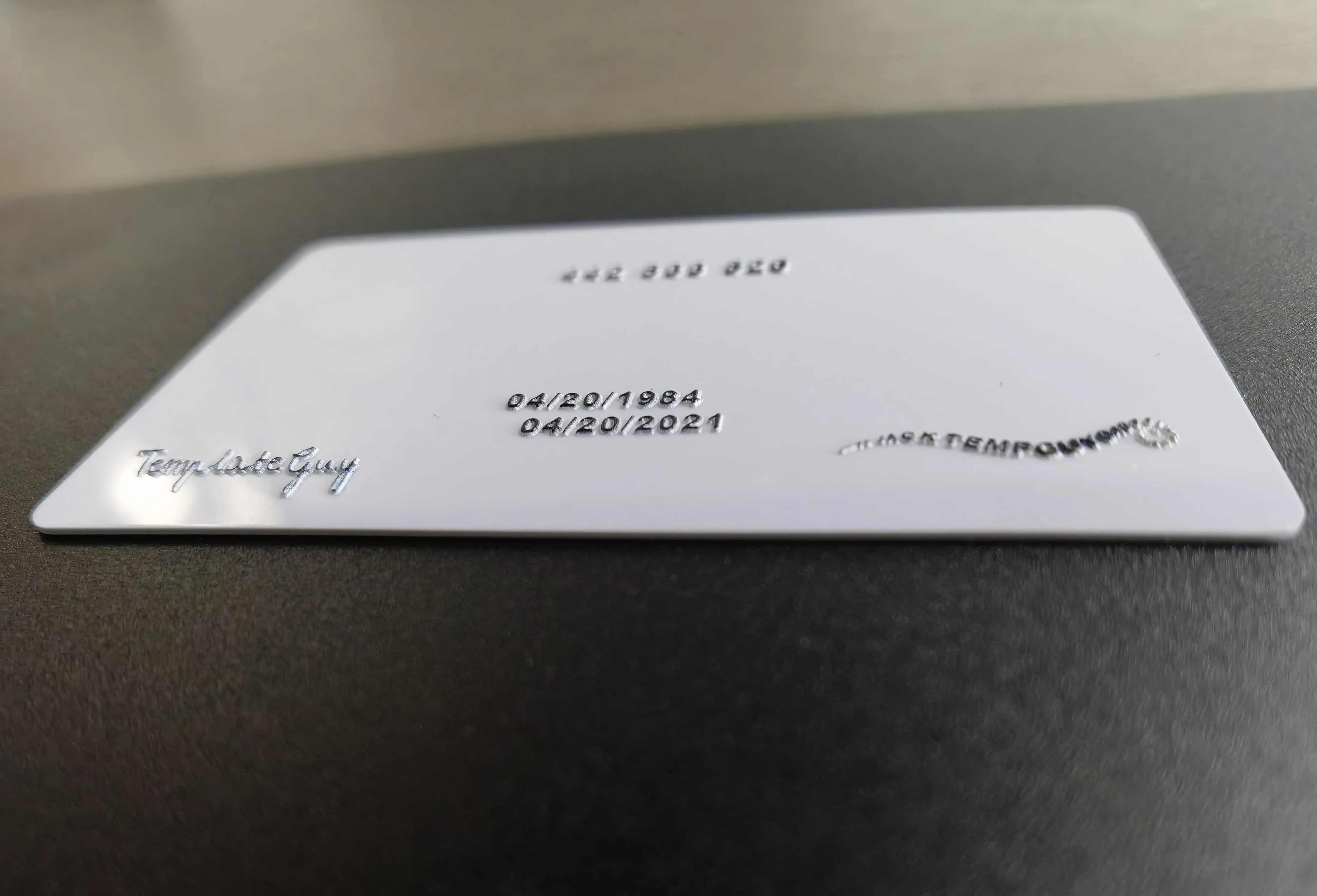

- High-capacity batch production with an A4 tray for up to 10 cards, reducing costs and increasing productivity.
- Automated height adjustment system to accommodate various card thicknesses seamlessly, from PVC to robust metal materials.
- Continuous Ink Supply System (CISS) with white ink stirring functionality to maintain performance and prevent clogs.
- Rotary attachment compatibility for cylindrical printing on mugs and bottles, expanding business opportunities.
Specifications
| Specifications | Technical Details |
|---|---|
| Model Number | F85V4 / F60V4 |
| Printhead Configuration | EPSON L805 or upgraded XP600 |
| Print Technology | Smart Bi-directional Printing, Auto Nozzle Checking & Cleaning System, Variable Ink Droplet Technology |
| Nozzle Configuration | 1440 nozzles (CMYK) + 320 nozzles (white) |
| Maximum Print Resolution | Up to 5760x1440 dpi |
| Ink Consumption | Ultra-low Consumption: ~1.5ml per A4 size text / ~4.0ml per A4 size full-color image |
| Compatible Ink | Premium LED UV-Ink (Scratch and water-resistant) |
| Color Configuration | CMYK+WW, CMYK+WV |
| Platform / Tray Size | 22 x 33 cm with vacuum-assisted flatbed |
| Maximum Print Area | 22 x 33 cm |
| Max Media Thickness | 0 - 15 cm (auto-detection enabled) |
| Print Speed | Approx. 178 seconds per A4 full-color image |
| Ink Delivery System | CISS with White Ink Stirring System |
| Software | Acro RIP 10.3 (or latest versions) Professional Color Management Software |
| Cooling System | Advanced water-cooled system |
| Operation & Control | Fully Automatic Height Adjustment, Smart Printhead Protection, and Automated Tray Movement |
| Data Interface | High-Speed USB 2.0 / 1.1 / 3.0 Compatible Port |
| Supported OS | Windows 7 / 8 / 10 / 11 (32-bit & 64-bit Compatible) |
| Working Environment | 15°C - 30°C (59°F - 86°F), 40% - 70% RH |
| Power Requirements | 110-240V AC, Low Power Consumption: 60W |
| Warranty & Support | 12-Month Manufacturer Warranty with Lifetime Technical Support |
| Dimensions (L x W x H) | Product: 61 x 51 x 51 cm / Package: 68 x 58 x 56 cm |
| Weight | Net: 32 kg / Gross: 48 kg |
| Applications | Credit cards, ID cards, business cards, membership cards, metal cards, custom tags, gift cards |
Applications & Industry Potential
The Spot A4 LED UV Card Printer is uniquely positioned for industries like banking, marketing, and retail. With its unmatched durability and customizability, this machine creates credit cards, membership badges, and promotional materials that stand the test of time.
Offering embossing, glossy finishes, and cylindrical printing options, it becomes the go-to solution for businesses seeking innovative branding opportunities. Compact yet versatile, the printer aids scalability and ensures premium-quality results for small and large projects alike.
This solution is ideal for professionals seeking to leave a lasting impression through exquisite custom cards and tags, leveraging both efficiency and precision.
