Digital UV flatbed printing has transformed the product customization industry. Because the ultraviolet light cures the ink film instantly on the surface of the substrate, you can print on almost any rigid or flexible material. However, printing successfully on diverse substrates requires understanding ink adhesion properties, thickness restrictions, and surface preparation. Here is our expert guide to UV printing materials.
1. Plastics, Acrylics, and Silicone Items
Acrylics, plastics, and silicone are the most common substrates for UV flatbed printing. They are highly compatible with UV curable inks, which bond directly to the synthetic surface. Common applications include customized acrylic awards, ABS plastic nameplates, personalized phone cases, and custom silicone watch bands.
Using a dual-printhead configuration allows the machine to lay down white ink and CMYK color ink in a single pass. This ensures high opacity on clear or dark plastic substrates. You can also print a gloss varnish layer to create raised, 3D tactile textures (embossed effects) and high-gloss accents.

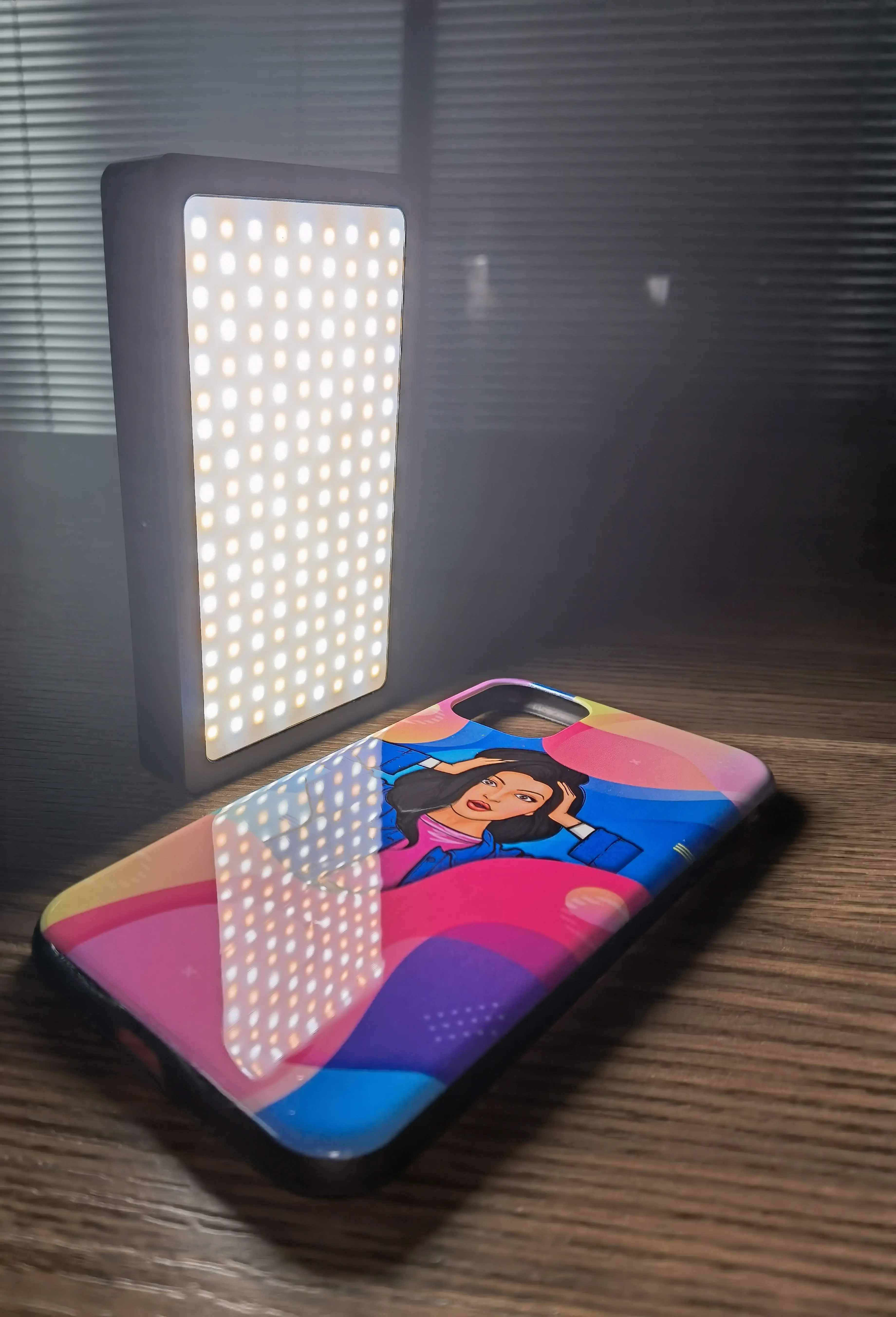

Plastics, Acrylics, and Silicone Print Samples
If you are printing on hard plastics (like acrylic or PVC sheets), use Rigid UV Ink for maximum scratch resistance. If you are printing on flexible materials (like TPU phone cases, leather, or silicone), use Flexible UV Ink to prevent the print from cracking when the material bends.
2. Wood, Leather, and Other Custom Materials
UV flatbed printers handle organic materials like wood, bamboo, and genuine leather beautifully. Because wood is porous, it absorbs the base carrier of the ink, locking the pigments tightly into the grain. This yields highly durable prints with a natural, rustic appearance that is popular for home decor, signage, and wooden gifts.
Beyond wood and leather, UV printers are highly versatile for printing on unique materials like round wax candles and ceramic mugs. Instant UV curing delivers sharp, scratch-resistant graphics even on curved or waxy surfaces.
Wood, TPU, Candle, and Ceramic Mug Print Samples
3. Glass, Ceramics, and Cylindrical Objects
Glass and ceramic mugs present a unique challenge because their surfaces are completely non-porous and highly smooth. Normal UV ink will slide or peel off easily during washing if the surface is not prepared correctly.
To print on glass, you must wipe the surface with a specialized glass adhesion promoter (primer) before printing. This primer acts as a chemical link between the glass molecules and the UV ink, ensuring that the design passes rigorous wash and scratch tests. For printing on bottles, wine glasses, or tumblers, you will need a rotary attachment that rotates the cylinder in synchronization with the printhead carriage.

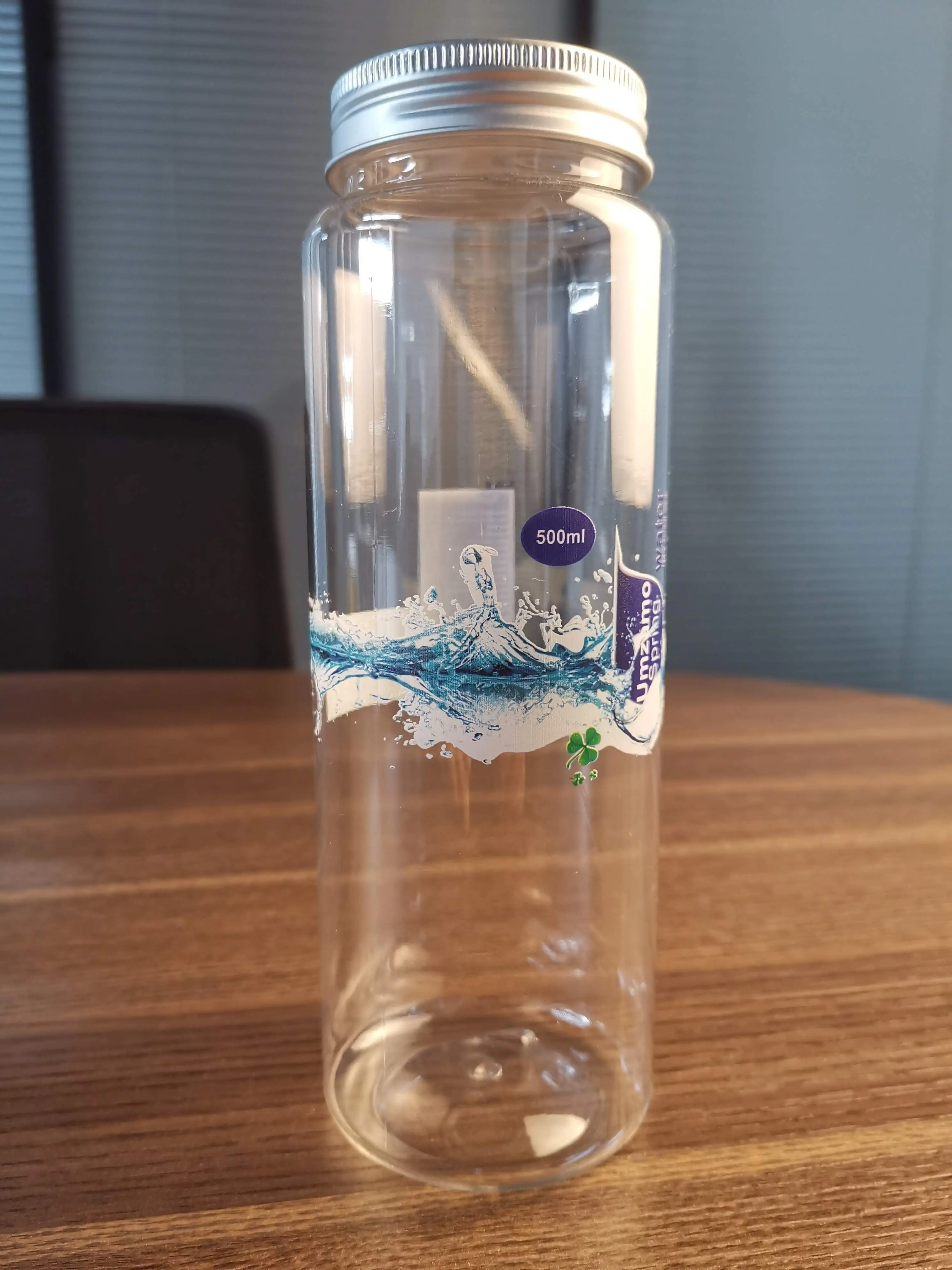

Cylinder and Glass Print Samples
4. Metals, Acrylic License Plates, and Industrial Substrates
UV flatbed printers can print directly onto metals like aluminum, stainless steel, brass, and copper. This is highly useful for industrial nameplates, control panels, custom flask bottles, and metallic signs. Additionally, UV flatbed printing is widely used for producing custom acrylic license plates and high-impact automotive signage, delivering vibrant graphics and robust weathering resistance.
Similar to glass, metals require a metal primer to maximize adhesion, particularly for outdoor signage or high-touch industrial panels. Laying down a white ink base layer ensures that colors look bright and true, instead of showing the metallic background through the print.
Metal and Acrylic Print Samples
5. Substrate Preparation & Primer Reference Chart
To ensure high durability and rub-resistance, refer to this professional substrate preparation guide:
| Substrate | Primer Required? | Surface Prep Method | Recommended Ink Type | Key Application |
|---|---|---|---|---|
| Acrylic / PVC | No | Wipe with alcohol to remove dust and oils | Rigid UV Ink | Signage, awards, keychains |
| TPU / Silicone | No | Clean surface thoroughly | Flexible UV Ink | Phone cases, flexible toys |
| Wood / Bamboo | No | Sand smooth, wipe off sawdust | Rigid UV Ink | Home decor, custom wooden cases |
| Glass / Crystal | Yes (Mandatory) | Wipe on glass primer, wait 2-3 mins to dry | Rigid UV Ink | Wine bottles, customized glasses |
| Stainless Steel / Brass | Yes (Recommended) | Apply metal primer or wipe with alcohol | Rigid UV Ink | Thermos bottles, nameplates |
| Ceramic Tiles | Yes (Recommended) | Wipe ceramic primer for wet environments | Rigid UV Ink | Decorative custom bathroom tiles |
6. Recommended UV Printers for Custom Shops
Depending on your business scale and primary printing substrates, we recommend the following premium UV hardware:
1. Spot A4 LED UV Printer (Cylinder & Flatbed)
For custom gift shops, start-up studios, and personalization shops printing on phone cases, golf balls, pens, and drinkware. The GNFEI Spot A4 LED UV Printer is equipped with a built-in rotary cylinder attachment and white ink circulation system. It allows you to print vibrant colors and tactile varnish textures on both flat and cylindrical surfaces with ease.
2. A3 Spot UV Printing Machine (UV Coating & Flatbed)
For larger commercial signage, industrial control panels, batch product packaging, and high-volume bottle printing. The heavy-duty GNFEI A3 Spot UV Printing Machine offers a spacious print area, higher print clearance, and industrial printheads for speed and durability, making it the perfect upgrade for expanding print shops.
7. GNFEI UV Printing Demonstration Videos
See our flatbed UV printers in action, showing the real printing process and finish quality on various substrates:
8. Frequently Asked Questions
A: The print will look perfect immediately after curing. However, because the ink cannot bond to the smooth, non-porous glass or metal molecules, the paint layer will peel, chip, or scrape off easily when exposed to water, cleaning solvents, or physical scratching.
A: Curing is completely automatic. A high-intensity UV LED lamp is mounted directly to the printhead carriage. It emits ultraviolet light that instantly cross-links and solidifies the ink polymers as the printhead passes over, drying the ink in real time.
A: Yes. Most modern UV flatbed printers feature dual-printhead designs. This allows the machine to lay down a white ink base layer and a CMYK color layer in a single pass, ensuring high opacity on transparent, dark, or metallic surfaces.
A: The 3D embossed (tactile) texture is created by layering white ink or clear gloss varnish on the same area. The printer builds up these layers sequentially to create physical, raised textures that you can feel, which is popular for phone cases, wood signs, and braille.
A: Yes. A flatbed printer can only print on flat surfaces. For cylindrical objects like water bottles, flasks, and ceramic mugs, a rotary attachment is required to rotate the object in synchronization with the printhead carriage to maintain a consistent print gap.
A: Rigid ink is formulated for hard materials (like acrylic, glass, and metal) to provide maximum scratch resistance. Flexible ink is designed for soft or bendable materials (like TPU phone cases, leather, and silicone) to prevent the print from cracking when flexed.
A: UV curable inks have excellent resistance to sunlight, moisture, and temperature fluctuations. When combined with proper surface priming and a clear topcoat, outdoor metal or acrylic signage can last for several years without significant fading.
A: No. Wood and genuine leather are naturally porous and textured, which allows UV ink to adhere strongly without any chemical primers. Simply clean the dust and oils off the surface before printing.
A: Daily maintenance is simple but critical. You should perform a test print printhead check daily, keep the capping station clean, and ensure the white ink circulation system is active to prevent white ink pigments from settling and clogging the nozzles.
A: While it is physically possible, it is not recommended. UV ink cures into a rigid plastic-like film, which makes garments stiff, uncomfortable to wear, and prone to cracking after washing. For textiles, DTG (Direct to Garment) or DTF (Direct to Film) printing is the correct technology.
